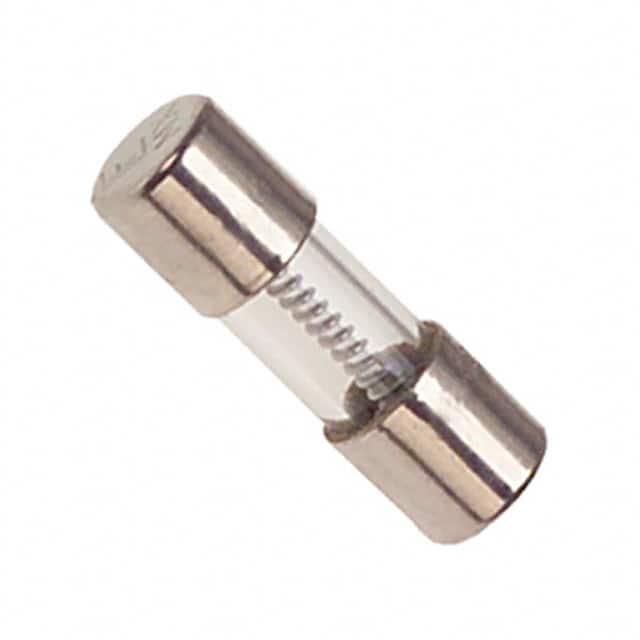

6152fc7034f4a14fb95e7536 FUSE GLASS 3.5A 250VAC 125VDC https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/6152fc7134f4a14fb95e7560/slopercent20blopercent20229percent20series.jpg

FUSE GLASS 3.5A 250VAC 125VDC

Product Attributes:

Series 229
Part Status Active
Mounting Type Holder
Fuse Type Cartridge, Glass
Current Rating (Amps) 3.5 A
Voltage Rating - AC 250 V
Voltage Rating - DC 125 V
Response Time Slow Blow
Package / Case 2AG, 5mm x 15mm
Breaking Capacity @ Rated Voltage 100A AC, 10kA DC
Melting I²t 110
Approval Agency CE, CSA, PSE, UL
Operating Temperature -55°C ~ 125°C
Color -
Size / Dimension 0.177" Dia x 0.570" L (4.50mm x 14.48mm)
* Image is only ment for representation
 TT-DKEY-F2476-ND
in stock INR
Littelfuse Inc.
1 1
FUSE GLASS 3.5A 250VAC 125VDC

FUSE GLASS 3.5A 250VAC 125VDC

Sku: TT-DKEY-F2476-ND
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

FUSE GLASS 3.5A 250VAC 125VDC

Product Attributes:

Series 229
Part Status Active
Mounting Type Holder
Fuse Type Cartridge, Glass
Current Rating (Amps) 3.5 A
Voltage Rating - AC 250 V
Voltage Rating - DC 125 V
Response Time Slow Blow
Package / Case 2AG, 5mm x 15mm
Breaking Capacity @ Rated Voltage 100A AC, 10kA DC
Melting I²t 110
Approval Agency CE, CSA, PSE, UL
Operating Temperature -55°C ~ 125°C
Color -
Size / Dimension 0.177" Dia x 0.570" L (4.50mm x 14.48mm)
* Image is only ment for representation
