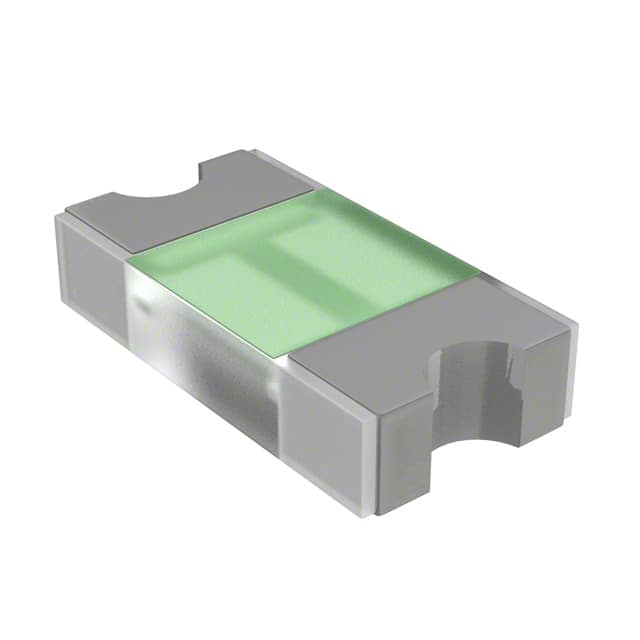

FUSE BOARD MOUNT 500MA 32VAC/VDC

Product Attributes:

Series494
Part StatusActive
Mounting TypeSurface Mount
Fuse TypeBoard Mount (Cartridge Style Excluded)
Current Rating (Amps)500 mA
Voltage Rating - AC32 V
Voltage Rating - DC32 V
Response TimeFast Blow
Package / Case0603 (1608 Metric)
Breaking Capacity @ Rated Voltage50A
Melting I²t0.0087
Approval AgencyCSA, UR
Operating Temperature-55°C ~ 90°C
Color-
Size / Dimension0.063" L x 0.032" W x 0.012" H (1.60mm x 0.81mm x 0.31mm)
* Image is only ment for representation
TT-DKEY-F11427TR-ND
in stockINR 173.215724
Littelfuse Inc.
1 1
FUSE BOARD MOUNT 500MA 32VAC/VDC

FUSE BOARD MOUNT 500MA 32VAC/VDC

Sku: TT-DKEY-F11427TR-ND
₹173.22


Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

FUSE BOARD MOUNT 500MA 32VAC/VDC

Product Attributes:

Series494
Part StatusActive
Mounting TypeSurface Mount
Fuse TypeBoard Mount (Cartridge Style Excluded)
Current Rating (Amps)500 mA
Voltage Rating - AC32 V
Voltage Rating - DC32 V
Response TimeFast Blow
Package / Case0603 (1608 Metric)
Breaking Capacity @ Rated Voltage50A
Melting I²t0.0087
Approval AgencyCSA, UR
Operating Temperature-55°C ~ 90°C
Color-
Size / Dimension0.063" L x 0.032" W x 0.012" H (1.60mm x 0.81mm x 0.31mm)
* Image is only ment for representation
