ESP8266-EVB

Description of product

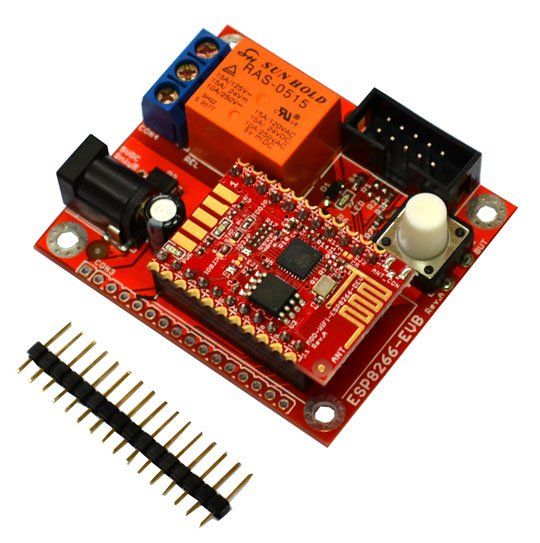

ESP8266-EVB is Evaluation board for ESP8266 with relay, button, UEXT, all GPIOs available on 0.1" header

ESP8266-EVB is an evaluation board for the highly-integrated WIFI SoC ESP8266EX. The board is recommended for beginners with ESP8266.

ESP8266EX is very highly integrated SoC which includes Tensilica's L106 32-bit core processor; SRAM; power management unit; RF front end. ESP8266EX has a number of interfaces - I2C, SPI, SDIO and also a number of free GPIO pins. The chip allows the implementation of a WIFI TCP-IP stack with just few extra components beside the ESP8266EX.

A board suitable for resarch and development of espressif's ESP8266EX chip. The module be used for home automation, smart plugs and lights, mesh networks, industrial wireless control, baby monitors, IP cameras, sensor networks, wearable wlectronics, etc.

FEATURES:

Board features:
  • Includes MOD-WIFI-ESP8266-DEV
  • Relay 220VAC/10A with connector and status LED
  • Big button for easier access to UART mode
  • Power jack for +5V external power supply
  • UEXT connector
  • Row of 16 pin holes at 0.1" step with all ESP8266 signals accessible; male-male 16-pin connector included
  • 4 mounting holes
  • Dimensions: (2.25 x 2)" ~ (57 x 50)mm

MOD-WIFI-ESP8266-DEV features:
  • Main chip: EPS8266EX
  • 2MB (16Mb) SPI flash memory
  • Power LED
  • User-programmable LED
  • SMT jumpers for different boot modes (FLASH, UART, SDO)
  • PCB antenna
  • UEXT pads for easier access to UART interface
  • Pads for a U.FL antenna connector (if you want to use external antenna)
  • 22 pin holes for easier access to processor pins
  • OSHW desgn
  • Dimensions: (1.3 x 0.9)" ~ (33 x 23)mm
