5ff6c92cbba4193e6909a0d9 ENTRY RADAR SENSOR MODULE https://cdn1.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/5ff6c9266c2b0c3eb5fd3827/webp/mfg_xm132_top.webp

Description:

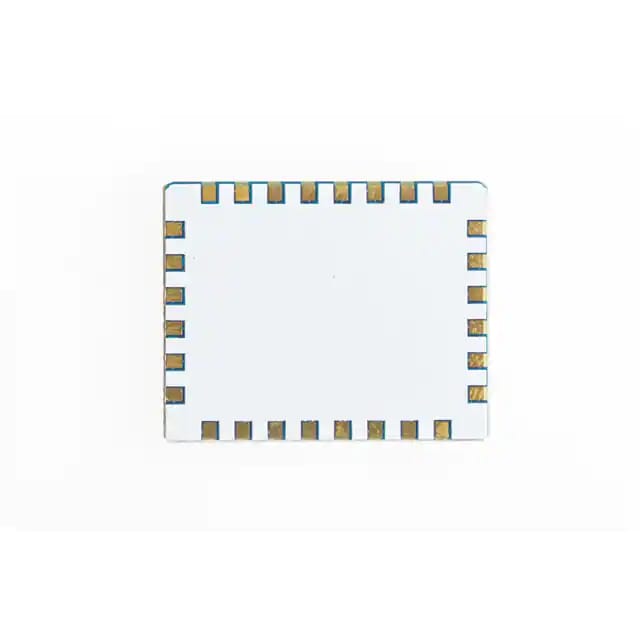

The XM132 Entry Module is built around the Arm® 32-bit Cortex®-M0+ MCU from STMicroelectronics (STM32G071CBU6) and can be used as a stand-alone module where customer can embed their application on top of the Acconeer RSS (Radar System Software). It can also be used with an external host controller where communication to the module is via a register command protocol.

Features:

  • A111 60 GHz Pulsed Coherent Radar (PCR) with integrated baseband, RF front-end and
    Antenna in Package (AiP)
  • 32-bit ARM® CortexTM M0+ MCU (STM32G071CBU6) 64 MHz clk speed, 128 kB Flash;
    36kB RAM
  • Single supply operating voltage 1.8-3.6V
  • Operating temperature -40° to 85°C
  • Included on XE132 evaluation board with LH132 lens kit support for evaluation purpose

Datasheets: ENTRY RADAR SENSOR MODULEPdf

TT-1891-XM132-ND
in stockINR 2264
Acconeer AB
1 1
XYZ Blog title
ABC Blog title here
ENTRY RADAR SENSOR MODULE

Description of product

Description:

The XM132 Entry Module is built around the Arm® 32-bit Cortex®-M0+ MCU from STMicroelectronics (STM32G071CBU6) and can be used as a stand-alone module where customer can embed their application on top of the Acconeer RSS (Radar System Software). It can also be used with an external host controller where communication to the module is via a register command protocol.

Features:

  • A111 60 GHz Pulsed Coherent Radar (PCR) with integrated baseband, RF front-end and
    Antenna in Package (AiP)
  • 32-bit ARM® CortexTM M0+ MCU (STM32G071CBU6) 64 MHz clk speed, 128 kB Flash;
    36kB RAM
  • Single supply operating voltage 1.8-3.6V
  • Operating temperature -40° to 85°C
  • Included on XE132 evaluation board with LH132 lens kit support for evaluation purpose

Datasheets: ENTRY RADAR SENSOR MODULEPdf
