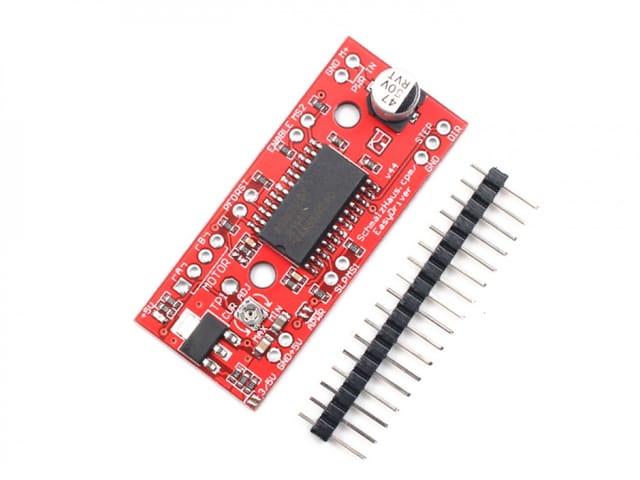

61711707666cd5588ade3d35 EasyDriver Stepper Motor Driver A3967 https://cdn1.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/617116b98c9a9f91cc4f8e09/webp/easydriver-stepper-motor-driver-a3967.jpg

Description:

The EasyDriver is a simple to use stepper motor driver, compatible with anything that can output a digital 0 to 5V pulse (or 0 to 3.3V pulse if you solder SJ2 closed on the EasyDriver). The EasyDriver requires a 6V to 30V supply to power the motor and can power any voltage of the stepper motor. The EasyDriver has an onboard voltage regulator for the digital interface that can be set to 5V or 3.3V. Connect a 4-wire stepper motor and a microcontroller and you’ve got precision motor control! EasyDriver drives bi-polar motors, and motors wired as bi-polar. I.e. 4,6, or 8 wire stepper motors.

Features:

  • A3967 Microstepping Driver
  • Compatible with 4, 6, and 8 wire stepper motors of any voltage
  • Adjustable current control from 150mA/phase to 700mA/phase
  • Power supply range from 6V to 30V. The higher the voltage, the higher the torque at high speeds

Package List:

  • 1 x EasyDriver Stepper Motor Driver A3967

TT-MF-MAM3967SM
in stock INR 212.8
Makerfabs
1 1

EasyDriver Stepper Motor Driver A3967

Sku: TT-MF-MAM3967SM
₹212.8


Sold By: tenettech
Features
  • Shipping in 10-12 Working days

Description of product

Description:

The EasyDriver is a simple to use stepper motor driver, compatible with anything that can output a digital 0 to 5V pulse (or 0 to 3.3V pulse if you solder SJ2 closed on the EasyDriver). The EasyDriver requires a 6V to 30V supply to power the motor and can power any voltage of the stepper motor. The EasyDriver has an onboard voltage regulator for the digital interface that can be set to 5V or 3.3V. Connect a 4-wire stepper motor and a microcontroller and you’ve got precision motor control! EasyDriver drives bi-polar motors, and motors wired as bi-polar. I.e. 4,6, or 8 wire stepper motors.

Features:

  • A3967 Microstepping Driver
  • Compatible with 4, 6, and 8 wire stepper motors of any voltage
  • Adjustable current control from 150mA/phase to 700mA/phase
  • Power supply range from 6V to 30V. The higher the voltage, the higher the torque at high speeds

Package List:

  • 1 x EasyDriver Stepper Motor Driver A3967
