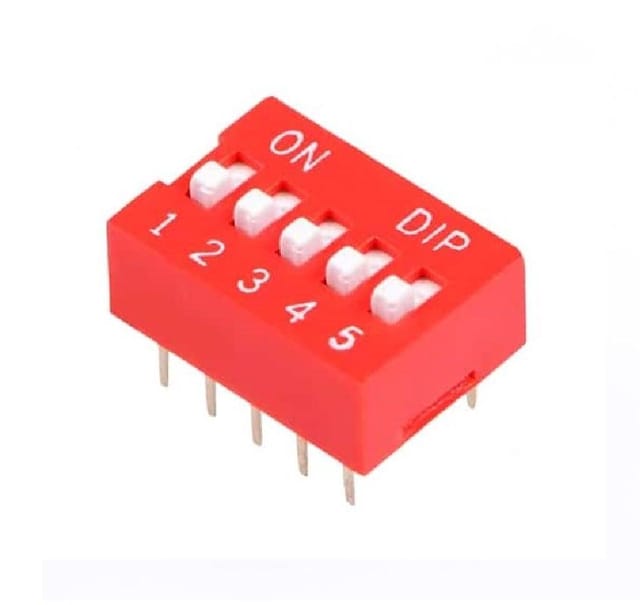

An electronic switch is an electronic component or device that can switch an electrical circuit, interrupting the current or diverting it from one conductor to another. An electronic switch is an electronic component or device that can switch an electrical circuit, interrupting the current or diverting it from one conductor to another. These PCB mount DIP switches are constructed from PBT which meets UL 94 V-0 and are sealed, the recessed actuator versions are sealed with protective tape. The slide position of these PCB DIP switches is in the ‘OFF’ position.

Features:

1. No of Pins: 5 way
2. Type: 5 DIP (Dual-In-Line)
3. Max Operating Voltage: 50 VDC
4. Max Current (Carrying Capacity): 150 mA DC
5. Max Switching: 0.8 W
6. Contact Resistance: <100 mΩ
7. Insulation Resistance (at 100 VDC) : >100 mΩ
8. Test Voltage (1 minute): 500 VAC
9. Life Expectancy: 2000 operations
10. Operating Temperature: -20 to +80 C
11. Mounting Type: Through Hole
12. Pitch: 2.54 mm

Package Includes:

1 x DIP Switch-HC-38
