Description

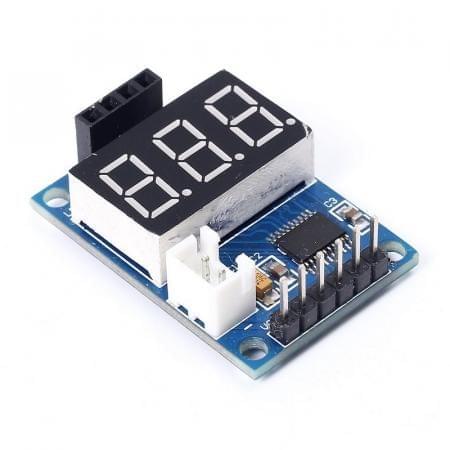

Digital Display for HC-SR04 Ultrasonic Distance Measurement Control Board adopts 8 bit MCU as the main control chip; it can be applied in distance measurement, testing HC-SR04 ultrasonic module performance. And it supports serial port display and digital tube display.
Features :
- Onboard STM8S103 high-performance microprocessor.
- With digital tube display.
- Serial port data output.
- Valid Measurement Distance: 3-400cm.
- Display Unit: cm.
- Max Error: 5V.
- Board Size: 36 x 25 x 12 mm.
- VCC, GND: 5V power interface.
- 2.54mm White Socket: 5V power interface.
- TX: module serial port transmits pin.
- RX: module serial port receive pin.
- NRST, SWIN: preset STM8 program download port.
Using Introduction:
1. The measurement distance can be displayed via a digital tube and serial port.
Digital Tube Display: directly plug in the ultrasonic module, connect 5V power.
2. Serial Port: plug-in ultrasonic module, VCC, TX, RX, GND respectively connects 5V, RX, TX, GND of USB to TTL module; serial port communication baud rate 9600, output format “D:XXX ”; XXX represents distance, unit is cm.
- Home
- Digital Display for HC-SR04 Ultrasonic Distance Measurement Control Board
Digital Display for HC-SR04 Ultrasonic Distance Measurement Control Board
SIZE GUIDE
- Shipping in 10-12 Working days
- http://cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5d5e6ff7cf809163febd6f52/images/5d5e6ff7cf809163febd6f53/5d5e6f50cf809163febd58c4/5d5e6f50cf809163febd58c4.jpg
Description of product
Description
Digital Display for HC-SR04 Ultrasonic Distance Measurement Control Board adopts 8 bit MCU as the main control chip; it can be applied in distance measurement, testing HC-SR04 ultrasonic module performance. And it supports serial port display and digital tube display.
Features :
- Onboard STM8S103 high-performance microprocessor.
- With digital tube display.
- Serial port data output.
- Valid Measurement Distance: 3-400cm.
- Display Unit: cm.
- Max Error: 5V.
- Board Size: 36 x 25 x 12 mm.
- VCC, GND: 5V power interface.
- 2.54mm White Socket: 5V power interface.
- TX: module serial port transmits pin.
- RX: module serial port receive pin.
- NRST, SWIN: preset STM8 program download port.
Using Introduction:
1. The measurement distance can be displayed via a digital tube and serial port.
Digital Tube Display: directly plug in the ultrasonic module, connect 5V power.
2. Serial Port: plug-in ultrasonic module, VCC, TX, RX, GND respectively connects 5V, RX, TX, GND of USB to TTL module; serial port communication baud rate 9600, output format “D:XXX ”; XXX represents distance, unit is cm.
