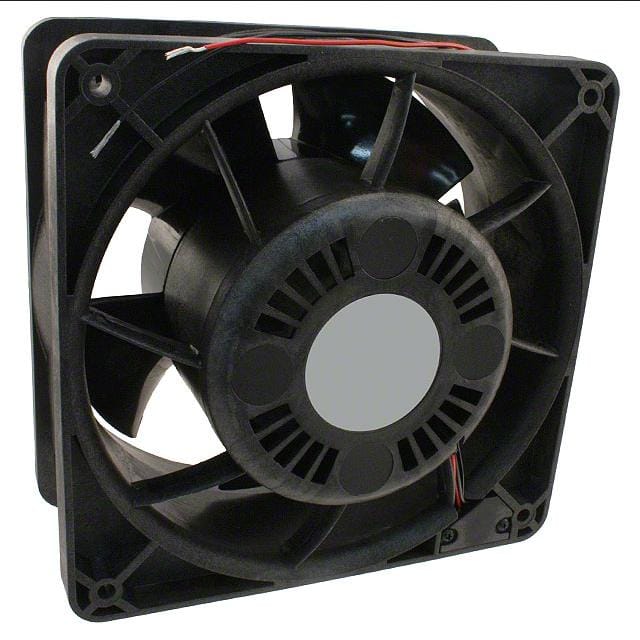

66b5efb9756e11002ad7e41a Comair Rotron CR301-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/66b5efba756e11002ad7e41d/031520.jpg

FAN AXIAL 175.5X111.8MM TD48B1

Product Attributes:

SeriesTarzan
Product StatusActive
Voltage - Rated48VDC
Size / DimensionSquare - 175.5mm L x 175.5mm H
Width111.8mm
Air Flow325.0 CFM (9.10m³/min)
Static Pressure0.630 in H2O (156.9 Pa)
Bearing TypeBall
Fan TypeTubeaxial
FeaturesAuto Restart, Locked Rotor Protection
Noise65.2dB(A)
RPM3275 RPM
Termination2 Wire Leads
Ingress Protection-
Operating Temperature14 ~ 158°F (-10 ~ 70°C)
Approval AgencycUL, UL
Weight5 lbs (2.3 kg)
Power (Watts)33.6 W
TT-DKEY-CR301-ND
in stockINR 11829.6
Comair Rotron
1 1
Comair Rotron CR301-ND

Comair Rotron CR301-ND

Sku: TT-DKEY-CR301-ND
₹11,829.6


Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

FAN AXIAL 175.5X111.8MM TD48B1

Product Attributes:

SeriesTarzan
Product StatusActive
Voltage - Rated48VDC
Size / DimensionSquare - 175.5mm L x 175.5mm H
Width111.8mm
Air Flow325.0 CFM (9.10m³/min)
Static Pressure0.630 in H2O (156.9 Pa)
Bearing TypeBall
Fan TypeTubeaxial
FeaturesAuto Restart, Locked Rotor Protection
Noise65.2dB(A)
RPM3275 RPM
Termination2 Wire Leads
Ingress Protection-
Operating Temperature14 ~ 158°F (-10 ~ 70°C)
Approval AgencycUL, UL
Weight5 lbs (2.3 kg)
Power (Watts)33.6 W
