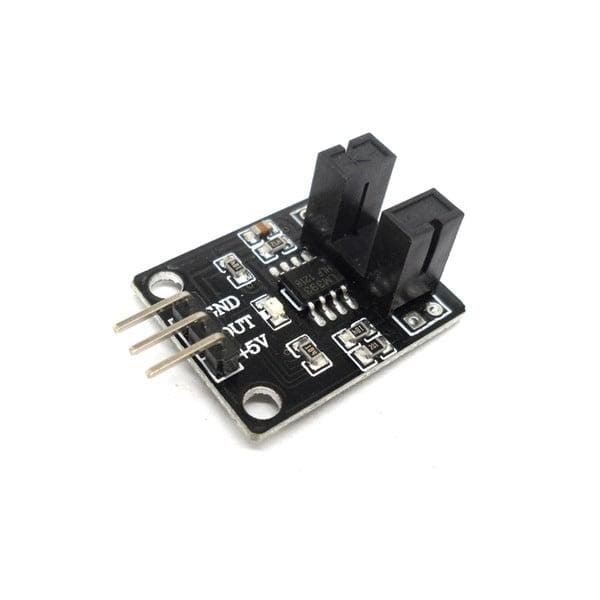

Correlation Photoelectric Infrared Count Slot Sensor Module 5 mm is a high-quality infrared Counter module at a very cheap price which comes with tiny size and integrated LM 393 chip.

It works as,

1. The OUT pin is a low level when there is no object between the photoelectric sensor, and the red LED is lit.
2. The OUT pin is a high level when there is an object between the photoelectric sensor, and the green LED is not bright.
3. The OUT port can be connected to MCU directly, Than MCU can calculate how many circles the smaller car has run per unit

Note: The sensitivity is not adjustable & Product may be different in terms of design .

Features:

1. The width of the optical coupling slot: 5mm
2. With a signal output indication.
3. Single signal output
4. The circuit board output switch!
5. The output valid signal is low.
6. It is useful for workpiece counts.
7. It’s also useful for industry counting, motor speed testing .

Package Includes:

1 x Correlation photoelectric Infrared count Slot sensor module.
