Description

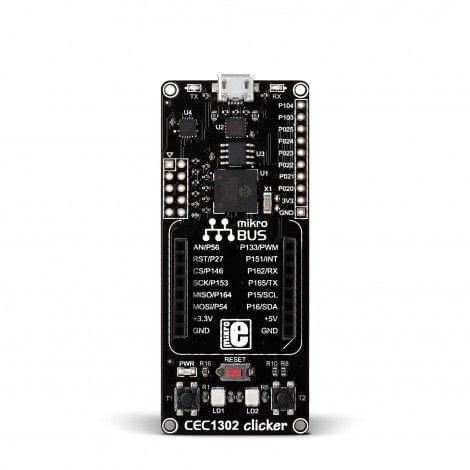

CEC1302 clicker is an amazingly compact starter development kit which brings click board™ connectivity to the 32-bit ARM® Cortex™-M4 CEC1302 microcontroller with an integrated cryptographic engine. Board features all you need to get started: 32-bit CEC1302 microcontroller, USB-UART connector, two LEDs and push buttons, reset button and headers for interfacing with external electronics.

Hundreds of possibilities with click boards. With mikroBUS™ socket, you can take advantage of the huge potential of click™ boards, the constantly expanding range of over 300 add-on boards.

Programming. To make your prototyping experience as convenient as possible, STM32 M4 clicker is preprogrammed with a UART bootloader. Just download our mikroBootloader application and you’re ready to upload your firmware. On-board mikroProg for CEC connector enables programming through external programmer/debugger.

Technical specifications

Applications

This compact board brings flexibility of click add-on boards to your favorite microcontroller, making it a perfect starter kit for implementing your ideas.

Key features

  • CEC1302 MCU, 128 KB SRAM, 32 KB boot ROM, 48MHz.
  • USB Mini-B connector. Two LEDs, two pushbuttons, reset button.
  • mikroProg connector and headers for interfacing with external electronics.

mikroBUS™ is specially designed pinout standard with SPI, I2C, Analog, UART, Interrupt, PWM, Reset and Power supply pins. See Standard Specification.

Key Benefits

  • Multipurpose Cryptographic engine (AES, RSA, SHA).
  • Single mikroBUS™ socket for adding click boards.
  • Small, affordable, yet powerful starter development kit.
  • Compact design with clear and descriptive silkscreen markings.
ArchitectureARM (32-bit)
ApplicationsThis compact board brings flexibility of click boards to a microcontroller with an integrated cryptographic engine, making it a perfect starter kit for trying out its features
MCUCEC1302
MCU speed48MHz
MCU Memory128kB SRAM, 32kB boot ROM
On-board modules1 x USB MINI-B connector, 2 x LEDs, 2 x push buttons, 1 x reset button
ProgrammingPreprogrammed with UART bootloader. Also features mikroProg for CEC connector
Input Voltage5V (via USB)
TT-MKK-1970
in stockINR 2812
