Description

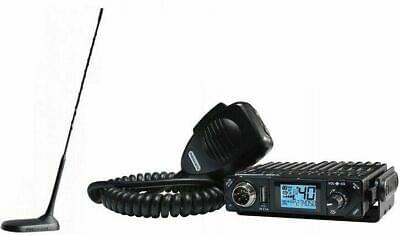

President BILL ASC Citizen's Band Radio now in India..No license required !

Features

• 40 channels AM / FM
• 12 V
• USB 5V / 2.1A
• Up/down channel selector
• Volume adjustment and ON/OFF
• Manual squelch and ASC
• Multi-functions LCD display
• S-meter
• ANL filter, NB, HI-CUT
• F function key
• Beep Function
• Roger Beep
• Mode switch AM / FM
• Preset channel programmable
• TOT (Time out timer)
•  Front microphone plug
• Microphone Electret or Dynamic
• External loudspeaker jack

Technical characteristics

General

• Number of channels : 40
• Modulation modes : AM/FM
• Frequency ranges : from 26.965 MHz to 27.405 MHz
• Antenna impedance : 50 ohms
• Power supply : 12 V
• Size : 102 (W) x 100 (D) x 25 (H) mm

Transmission

• Frequency allowance : +/- 200 Hz
• Carrier power : 4 W AM / 4 W FM
• Transmission interference : inferior to 4 nW (- 54 dBm)
• Audio response : 300 Hz to 3 KHz
• Emitted power in the adj. channel : inferior a 20 μW
• Microphone sensitivity : 7 mV
• Drain : 1,7 A at 13,2 V
• Modulated signal distortion : 2 %

Reception

• Maxi. sensitivity at 20 dB sinad : 0,5 µV - 113 dBm AM / 0,35 µV - 116 dBm FM
• Frequency response : 300 Hz to 3 kHz
• Adjacent channel selectivity : 60 dB
• Maximum audio power : 2 W
• Squelch sensitivity : mini 0.2 μV - 120 dBm / maxi 1 mV - 47 dBm
• Frequency image rejection rate : 60 dB
• Intermediate frequency rej. rate : 70 dB
• Drain : 180 ~ 500 mA (13,2 V)
