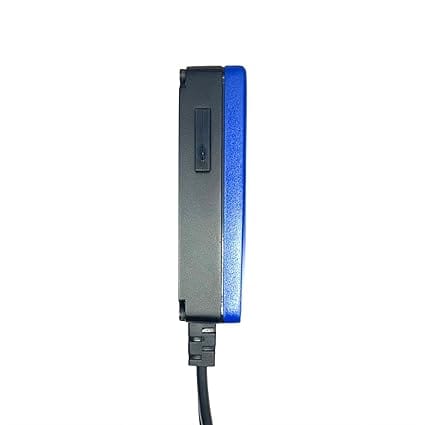

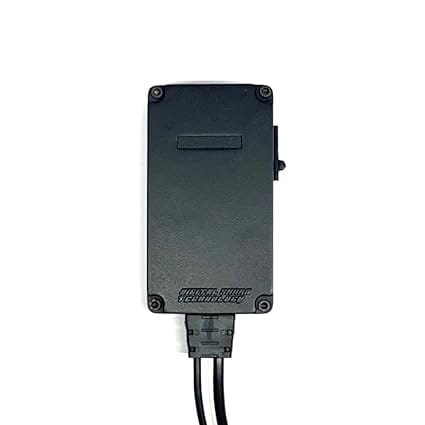

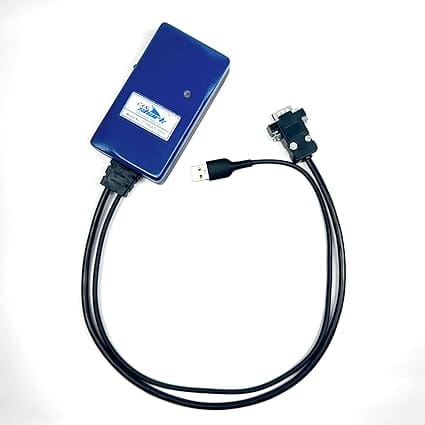

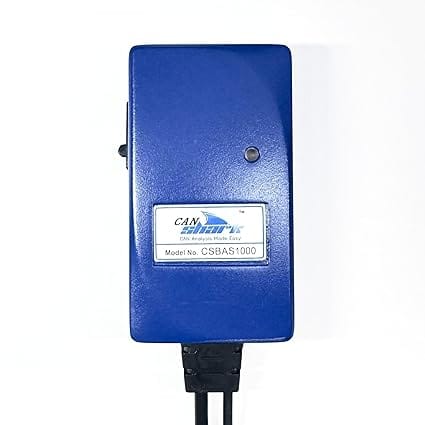

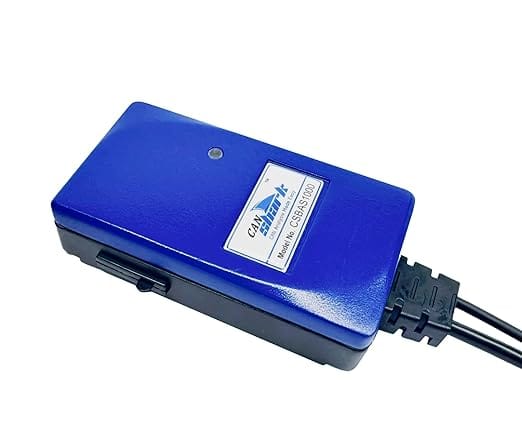

CANShark Analyzer is a 3-in-1 device for real-time CAN / CAN FD analysis, data logging, and ECU flashing. It supports C API, Python, and LabVIEW for flexible automation, making it ideal for Automotive, Industrial, Railway, and Aerospace applications.

CAN ANALYZER

Introducing the CANShark Analyzer by Digital Shark – a powerful real-time CAN bus analysis tool supporting CAN 2.0 and CAN FD protocols. It delivers high-speed monitoring with precise timestamping, error frame detection, and symbolic decoding for deep protocol analysis. The device supports real-time data transmission via USB and integrates with open-source BUSMaster software for flexible control. It also supports Python scripting to automate your testing workflows, enabling efficient validation, repetitive task automation, and custom test sequence execution. Designed for long-term reliability, it is ideal for data logging, reverse engineering, and debugging complex embedded
systems.

CAN DATA LOGGER

• USB Bus-Powered: Fully portable, no external power adapter required
• Raw CAN Data Logging: Save logs in .log, .mf4, and .trc formats
• Accurate Timestamping: Real-time clock for precise data tracking
• Easy Data Extraction: Transfer logs from SD card via USB
• CAN Messages: Send CAN messages while logging data.

CAN ECU Flasher

• Low-Latency CAN & CAN FD Communication: Fast data exchangevia flexible APIs
• Customizable Workflows: Tailor CAN/CAN FD communication and automate processes
• High-Speed ECU Flashing: Firmware updates over CAN FD using ISO 15765-2 (ISO-TP)
• API Support: It supports C API, Python,

KEY FEATURES

• Real-Time CAN Bus Analysis
• Customized BUSMaster Software
• ECU Flashing
• Reliable, Low-Cost Solution
• USB Bus-Powered
• USB Data Transfer
• Python CAN API Support
• IP65-Rated Enclosure
• Laptop Free Data Logging
• Graphical Representation

SPECIFICATIONS

Key Software Features

• CAN Network Analysis: Real-time monitoring, logging, and filtering of CAN messages

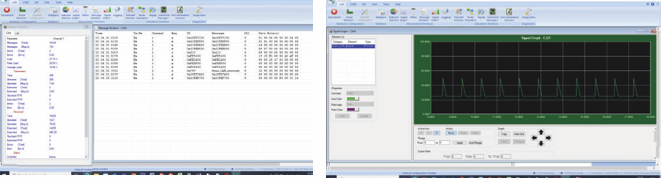

• Graphical Representation: Graphical visualization of signal trends and performance
• Simulation: Simulate CAN nodes and generate custom messages for network testing
• Scripting: Automate repetitive tasks using built-in scripting tools
• Signal Database Support: Import DBC files for accurate signal decoding and analysis
• Data Logging & Replay: Record and replay CAN data for in-depth troubleshooting
• Error Detection: Monitor and detect bus errors to ensure system integrity
• CAN Messages: Send CAN messages while logging data

DATASHEET
