KEMET’s X7R dielectric features a 125°C maximum operating temperature and is considered “temperature stable.” The X7R dielectric is a Class II material. Components of this classification are fixed, ceramic dielectric capacitors suited for bypass and decoupling applications or for frequency discriminating circuits where Q and stability of capacitance characteristics are not critical. X7R exhibits a predictable change in capacitance with respect to time and voltage and boasts a minimal change in capacitance with reference to ambient temperature. Capacitance change is limited to ±15% from −55°C to +125°C.
Operating temperature range from −55°C to +125°C
Capacitance range includes E24 decade values from 10pF to 47µF
DC voltage ratings from 6.3V to 250V
EIA 0402, 0603, 0805, 1206, 1210, 1808, 1812, 1825, 2220 and 2225 case sizes available
Temperature stable dielectric
Capacitance tolerances of ±5%, ±10% and ±20%
Non-polar device, minimizing installation concerns

Package Includes:

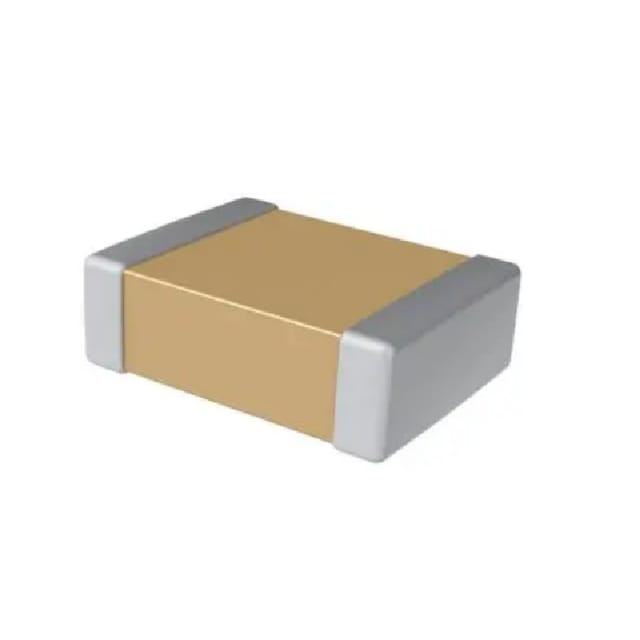

1 x C0805C104K6RACTU-KEMET-SMD Multilayer Ceramic Capacitor, 0.1 µF, 35 V, 0805 [2012 Metric], ± 10%, X7R, C Series KEMET
