KEMET’s X5R dielectric features an 85°C maximum operating temperature and is considered “semi-stable.” The Electronics Components, Assemblies & Materials Association (EIA) characterizes X5R dielectric as a Class II material. Components of this classification are fixed, ceramic dielectric capacitors suited for bypass and decoupling applications or for frequency discriminating circuits where Q and stability of capacitance characteristics are not critical. X5R exhibits a predictable change in capacitance with respect to time and voltage and boasts a minimal change in capacitance with reference to ambient temperature. Capacitance change is limited to ±15% from −55°C to +85°C.
Operating temperature range from −55°C to +85°C
Capacitance offerings ranging from 0.01 μF to 100 μF
DC voltage rating of 4V to 50V
High temperature range of -55°C to 85°C
Temperature stable dielectric
Capacitance tolerances of ±10% and ±20%
Extremely low ESR and ESL
No piezoelectric noise
Applications
Industrial, Consumer Electronics, Portable Devices, Power Management

Package Includes:

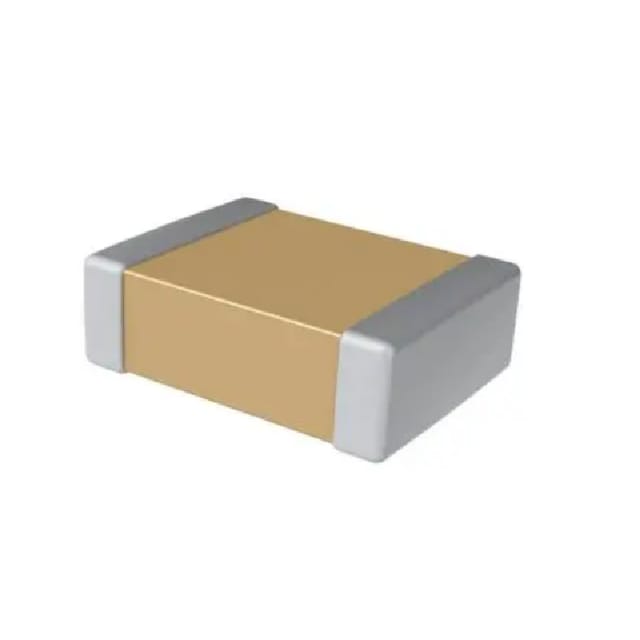

1 x C0603C106M9PACTU-KEMET-SMD Multilayer Ceramic Capacitor, 10 µF, 6.3 V, 0603 [1608 Metric], ± 20%, X5R, C Series KEMET
