KEMET’s X7R dielectric features a 125°C maximum operating temperature and is considered “temperature stable.” The X7R dielectric is a Class II material. Components of this classification are fixed, ceramic dielectric capacitors suited for bypass and decoupling applications or for frequency discriminating circuits where Q and stability of capacitance characteristics are not critical. X7R exhibits a predictable change in capacitance with respect to time and voltage and boasts a minimal change in capacitance with reference to ambient temperature. Capacitance change is limited to ±15% from −55°C to +125°C.
Operating temperature range from −55°C to +125°C
Capacitance range includes E24 decade values from 10pF to 47µF
DC voltage rating of 6.3V to 250V
High temperature range of -55°C to 125°C
Temperature stable dielectric
Capacitance tolerances of ±5%, ±10% and ±20%
Non-polar device, minimizing installation concerns
Applications
Industrial, Consumer Electronics, Portable Devices, Power Management

Package Includes:

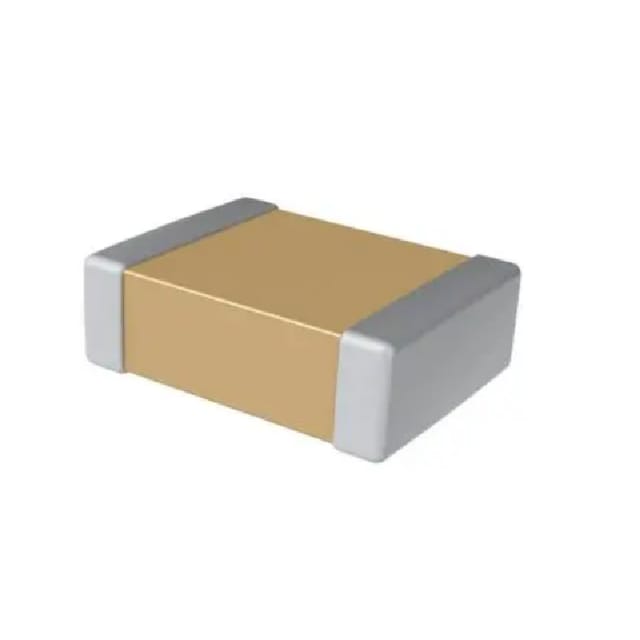

1 x C0603C103K1RACTU-KEMET-SMD Multilayer Ceramic Capacitor, 0.01 µF, 100 V, 0603 [1608 Metric], ± 10%, X7R, C Series KEMET
