BM08B-XASS-TF(LF)(SN)-JST-1x8P 8P XA Tin 8 -25℃~+85℃ 3A 1 2.5mm Copper alloy Standing paste SMD,P=2.5mm Wire To Board Connector ROHS.1x8P 8P XA Tin 8 -25℃~+85℃ 3A 1 2.5mm Copper alloy Standing paste SMD,P=2.5mm Wire To Board Connector ROHS

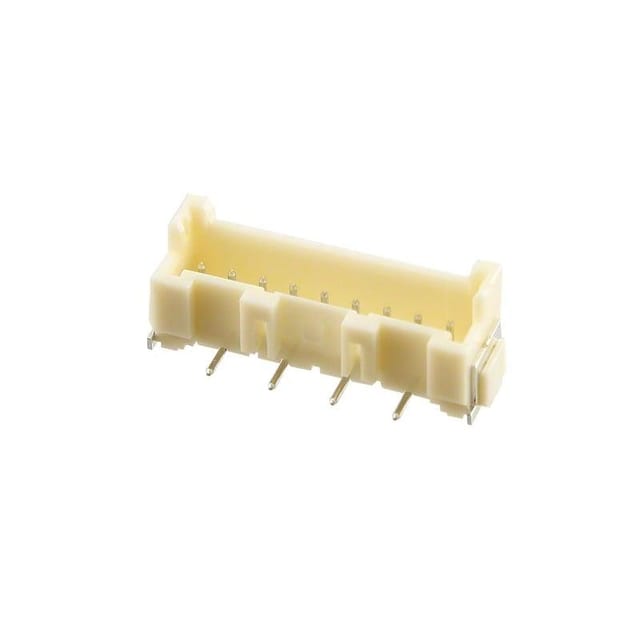

Note: Images for reference only.

Specifications:

Y-Width of Bottom Edge on Board: 10.4mm
Pins Structure: 1x8P
Number of Pins: 8P
Reference Series: XA
Contact Plating: Tin
Row Spacing: –
Number of PINs Per Row: 8
Operating Temperature Range: -25℃~+85℃
Current Rating (Max): 3A
Plastic Material: PA
Colour: White
Supplementary Features: Auxiliary soldering legs
Number of Rows: 1
Flame Retardant Rating: UL94V-0
Pitch: 2.5mm
Rated Voltage (Max): 250V
Contact Material: Copper alloy
X-Length of Bottom Edge on Board (Spacing Line): 25mm
Z-Height of the Board: 9.4mm
Mounting Style: Standing paste

For detailed specifications, please refer to datasheet in Attachments.

Package Includes:

1 x BM08B-XASS-TF(LF)(SN)-JST-1x8P 8P XA Tin 8 -25℃~+85℃ 3A 1 2.5mm Copper alloy Standing paste SMD,P=2.5mm Wire To Board Connector ROHS
