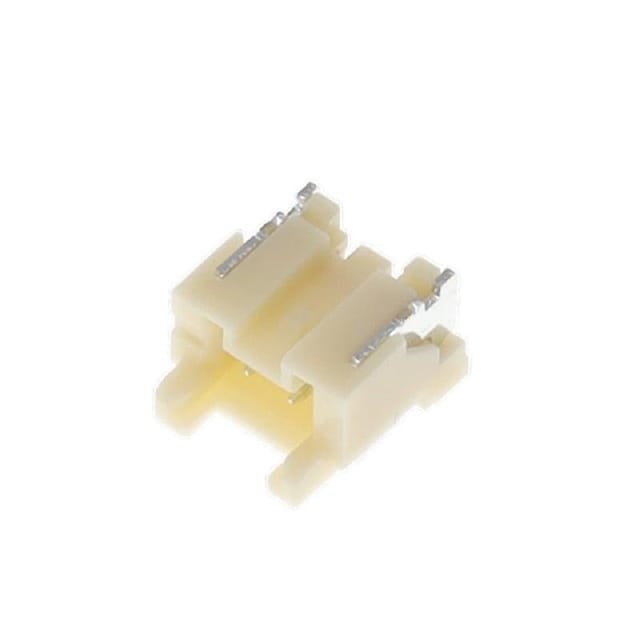

BM02B-PASS-TFT(LF)(SN)-JST-1x2P 2P PA Tin 2 -25℃~+85℃ 3A 1 2mm Copper alloy Standing paste SMD,P=2mm Wire To Board Connector ROHS.1x2P 2P PA Tin 2 -25℃~+85℃ 3A 1 2mm Copper alloy Standing paste SMD,P=2mm Wire To Board Connector ROHS

Note: Images for reference only.

Specifications:

Y-Width of Bottom Edge on Board: 5.7mm
Pins Structure: 1x2P
Number of Pins: 2P
Reference Series: PA
Contact Plating: Tin
Row Spacing: –
Number of PINs Per Row: 2
Operating Temperature Range: -25℃~+85℃
Current Rating (Max): 3A
Plastic Material: PA
Colour: White
Supplementary Features: Auxiliary soldering legs
Number of Rows: 1
Flame Retardant Rating: UL94V-0
Pitch: 2mm
Rated Voltage (Max): 250V
Contact Material: Copper alloy
X-Length of Bottom Edge on Board (Spacing Line): 8mm
Z-Height of the Board: 8.9mm
Mounting Style: Standing paste

For detailed specifications, please refer to datasheet in Attachments.

Package Includes:

1 x BM02B-PASS-TFT(LF)(SN)-JST-1x2P 2P PA Tin 2 -25℃~+85℃ 3A 1 2mm Copper alloy Standing paste SMD,P=2mm Wire To Board Connector ROHS
