Description

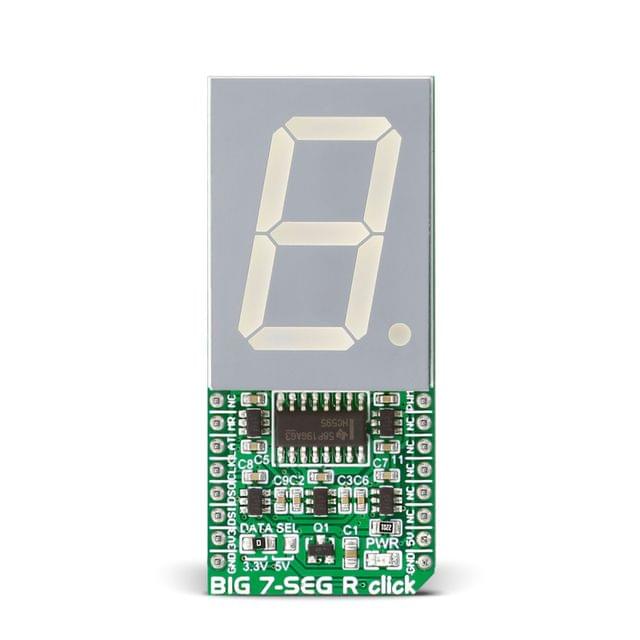

BIG 7-SEG R click is what you need if you want to add a seven-segment LED display to your project. This click features an SC10-21SRWA seven-segment display. Communication between the MCU and the SC10-21SRWA display is established via serial-IN, parallel-OUT shift register 74HC595 IC.
The click runs on either 3.3V of 5V power supply and communicates with the target MCU over an SPI interface.
Display
The click displays letters, numbers and symbols in highly readable form. It can be used in any simple interface and combined with other click boards. The color of the displayed character is red, as the R in the name of the click states.
Light intensity
The light intensity on the display is controlled via the PWM pin on the board.
Applications
Adding a seven-segment LED display to your device with SPI interface.
Specifications
| Type | LED Segment |
| Applications | Adding a seven-segment LED display to your device with SPI interface |
| On-board modules | SC10-21SRWA seven-segment display, parallel-OUT shift register 74HC595 IC |
| Key Features | 1.0 inch digit height, Standard: grey face, white segment, Low current operation |
| Key Benefits | Letters, numbers and symbols in highly readable form |
| Interface | SPI,PWM,GPIO |
| Input Voltage | 3.3V or 5V |
| Compatibility | mikroBUS |
| Click board size | L (57.15 x 25.4 mm) |
