5abb8a146a8745c898a70c02 Bi Hall click https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5abb8a146a8745c898a70c02/images/5abb8a146a8745c898a70c03/5abb88f6bc2e49c87474240d/5abb88f6bc2e49c87474240d.jpg

Description

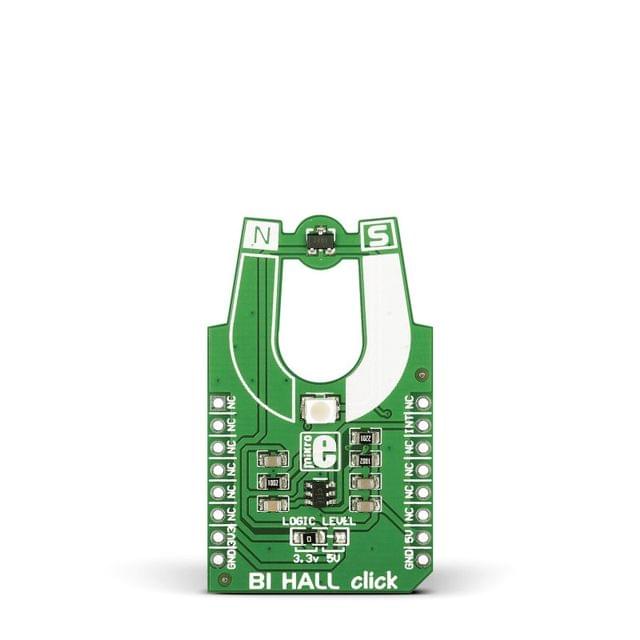

Bi Hall click is a simple solution for adding a bipolar Hall switch to your design. It carries the Melexis US2882 bipolar Hall-effect switch and a 74LVC1T45 single bit, dual supply transceiver. A bipolar Hall effect sensor is sensitive to both north and south pole magnetic fields. Bi Hall click outputs a HIGH logic level when exposed to a south pole magnetic field, and a LOW logic level when exposed to a north pole magnetic field. When removed from a magnetic field, the logic level stays in its previous state. The US2882 IC integrates a Schmitt trigger with hysteresis, thus preventing output oscillation near the switching point between alternating magnetic poles. Bi Hall click communicates with the target board through the mikroBUS INT line. It's designed to use either a 3.3V or a 5V power supply.

Specification

TypeHall effect,Magnetic
ApplicationsSuitable for any application where alternating north and south poles are used to ensure switching.
For example, to measure rotary speed by utilizing a ring magnet
On-board modules Melexis US2882 bipolar Hall-effect switch and a 74LVC1T45 single bit, dual supply transceiver
Key FeaturesSensitive to both north and south pole magnetic fields
Key BenefitsHysteresis prevents output oscillation near switching point. Enables you to include highly
reliable inductive sensing technology in your design
InterfaceGPIO
Input Voltage3.3V or 5V
CompatibilitymikroBUS
Click board sizeM (42.9 x 25.4 mm)

    TT-MK-MIKROE-1646
    out of stock INR 1437.24
    MIKROELECTRONICA
    1 1
    Bi Hall click

    Bi Hall click

    Sku: TT-MK-MIKROE-1646
    ₹1,437.24

    Sold Out

    Sold By: tenettech
    Features
    • Shipping in 10-12 Working days
    • http://cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5abb8a146a8745c898a70c02/images/5abb8a146a8745c898a70c03/5abb88f6bc2e49c87474240d/5abb88f6bc2e49c87474240d.jpg

    Description of product

    Description

    Bi Hall click is a simple solution for adding a bipolar Hall switch to your design. It carries the Melexis US2882 bipolar Hall-effect switch and a 74LVC1T45 single bit, dual supply transceiver. A bipolar Hall effect sensor is sensitive to both north and south pole magnetic fields. Bi Hall click outputs a HIGH logic level when exposed to a south pole magnetic field, and a LOW logic level when exposed to a north pole magnetic field. When removed from a magnetic field, the logic level stays in its previous state. The US2882 IC integrates a Schmitt trigger with hysteresis, thus preventing output oscillation near the switching point between alternating magnetic poles. Bi Hall click communicates with the target board through the mikroBUS INT line. It's designed to use either a 3.3V or a 5V power supply.

    Specification

    TypeHall effect,Magnetic
    ApplicationsSuitable for any application where alternating north and south poles are used to ensure switching.
    For example, to measure rotary speed by utilizing a ring magnet
    On-board modules Melexis US2882 bipolar Hall-effect switch and a 74LVC1T45 single bit, dual supply transceiver
    Key FeaturesSensitive to both north and south pole magnetic fields
    Key BenefitsHysteresis prevents output oscillation near switching point. Enables you to include highly
    reliable inductive sensing technology in your design
    InterfaceGPIO
    Input Voltage3.3V or 5V
    CompatibilitymikroBUS
    Click board sizeM (42.9 x 25.4 mm)
