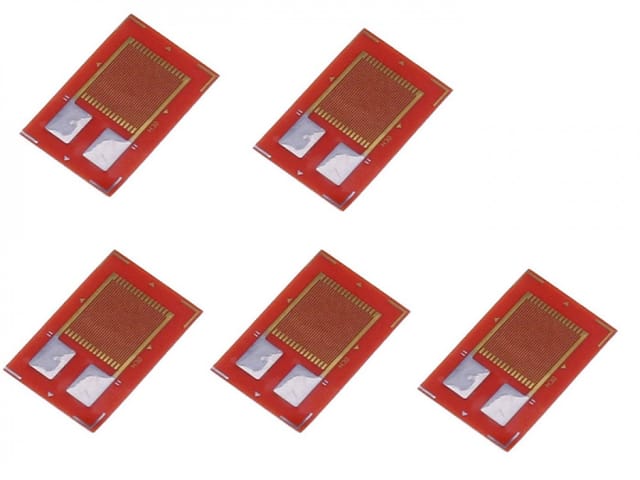

616fefc25242a33071a0cfe0 BF350 Resistance Strain Gauge https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/616fefb9440f06306b8c52aa/bf350-resistance-strain-gauge-5pcs.jpg

Description:

BF350 High-precise resistance strain gauge is a foil metal strain gauge, widely used in pressure sensors and weighing sensors. It shares features of high accuracy, good stability,fully-closed structure, and automatic compensation of temperature and creep. Specifically, its backing material is made of modified phenolic while its gate wire is made of Constantan materials. BF350 is mainly fit for 0.02 level manufacturing crafts pressure sensor which means its output deviation should be controlled within 0.02 so its precision is really high. You could use it to measure the strain of components directly!

Features:

  • Size: 7.4mm(length) x 4.4mm(width)
  • The key technical indexes: BF series
  • Strain limit: 2.0%
  • Fatigue life:≥1M
  • Resistance: 350 ohms
  • Contrast: 800: 1 (Min) (transmission)
  • Sensitivity coefficient: 2.00-2.20
  • Using temperature range: -30~+80
  • Tolerance of average resistance: ≤±0.1%
  • Sensitive coefficient dispersion:≤±1%

Package List:

  • 1 x BF350 Resistance Strain Gauge

TT-MF-MSO350BF5
in stockINR 95.304
Makerfabs
1 1
BF350 Resistance Strain Gauge

BF350 Resistance Strain Gauge

Sku: TT-MF-MSO350BF5
₹95.3
₹100.32   (5% OFF)

6 item left in Stock

Sold By: tenettech
Features
  • Shipping in 10-12 Working days

Description of product

Description:

BF350 High-precise resistance strain gauge is a foil metal strain gauge, widely used in pressure sensors and weighing sensors. It shares features of high accuracy, good stability,fully-closed structure, and automatic compensation of temperature and creep. Specifically, its backing material is made of modified phenolic while its gate wire is made of Constantan materials. BF350 is mainly fit for 0.02 level manufacturing crafts pressure sensor which means its output deviation should be controlled within 0.02 so its precision is really high. You could use it to measure the strain of components directly!

Features:

  • Size: 7.4mm(length) x 4.4mm(width)
  • The key technical indexes: BF series
  • Strain limit: 2.0%
  • Fatigue life:≥1M
  • Resistance: 350 ohms
  • Contrast: 800: 1 (Min) (transmission)
  • Sensitivity coefficient: 2.00-2.20
  • Using temperature range: -30~+80
  • Tolerance of average resistance: ≤±0.1%
  • Sensitive coefficient dispersion:≤±1%

Package List:

  • 1 x BF350 Resistance Strain Gauge
