Description of product

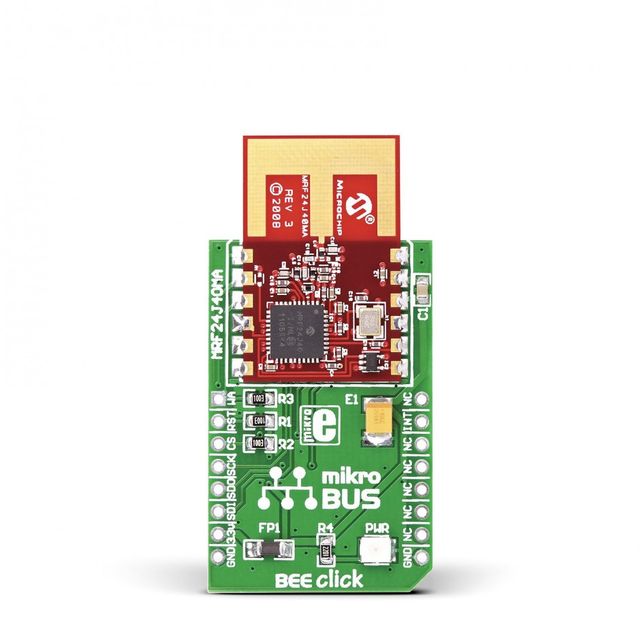

BEE click features MRF24J40MA 2.4 GHz IEEE 802.15.4 radio transceiver module from Microchip. The click is designed to run on 3.3V power supply only. It communicates with the target microcontroller over an SPI interface. BEE click is an ideal solution for wireless networks, smart home and building automation, and other electronic applications that need wireless communication.

MRF24J40MA module

MRF24J40MA is IEEE 802.15.4™ standard compliant RF transceiver. It supports ZigBee®, MiWi™, MiWi P2P and proprietary wireless networking protocols with data rates of 250 kbps (IEEE 802.15.4).


PCB antenna

This module includes an integrated PCB antenna and matching circuitry and is connected to the microcontroller via an SPI interface.

Power supply

The board is designed to use 3.3V power supply only. If you need to add ZigBee™ feature to your 5V prototype or development board, we recommend you to use other boards such as the EasyBee 3 board.

Key features

  • PCB antenna
  • MRF24J40MA module
    • Low current consumption (Tx 23mA, Rx 19mA, Sleep 2uA)
    • ZigBee stack
    • MiWi™ stack
  • Interface: SPI
  • 3.3V power supply
