AM3359-SOM-EVB-IND

Description of product

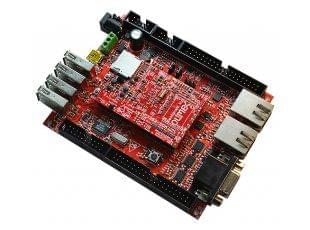

AM3352-SOM-EVB is reference design on 2 layer board for AM3352-SOM which adds 4x USB hosts, USB OTG, CAN driver, VGA, 2x UEXT, JTAG, LCD, 2x 100MB Ethernet is available with Eagle CAD files, so everyone can modify and tailor to his needs.

FEATURES

  • Includes AM3352-SOM or AM3352-SOM-IND or AM3359-SOM-IND
  • The EVB part is the same between all variants, only the included SOM part is different
  • Matching connectors
  • 2 × 100MB Ethernet interface
  • VGA output with DA-15 connector
  • LCD video output on a 40 pin at 0.1" step connector (compatible with Olimex LCD displays)
  • CAN driver with a connector
  • 4 × USB host
  • USB-OTG
  • 2 × UEXT connectors
  • JTAG debugging connector with TI layout - 20 pin @ 0.1" step
  • GPIO connector × 40 pin @  0.1" step
  • Extra DEBUG pins for easier serial debugging
  • Status LEDs
  • Power barrel jack, +6V to +16V DC
  • Dimensions of the SOM part: (2.4×1.5)'' ~ (61×38)mm
  • Dimensions of the EVB part: (3.94×3.54)" ~ (110×90)mm

DOCUMENTS

HARDWARE

SOFTWARE

  • Image links, instructions, demo software, customer projects and more might be found at the wiki page of AM3352-SOM: AM3352 wiki page
