Accel click

Description of product

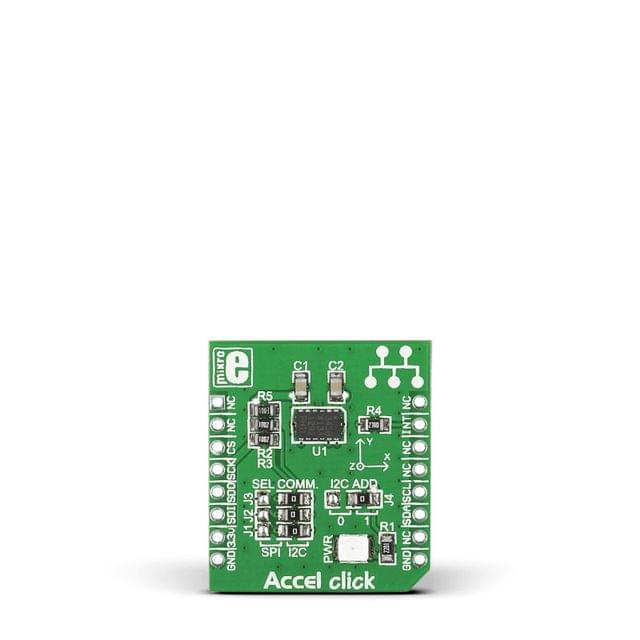

Accel Click is an accessory board in mikroBUS form factor. It features ADXL345 3-axis accelerometer module with ultra-low power and high resolution (13-bit) measurement. Module supports several sensing functions such as single/double tap detection, activity/inactivity monitoring, free-fall detection etc. It has memory management system with a 32-level FIFO buffer to store data with minimized host processor activity. Board is designed to use 3.3V power supply only.

SPECIFICATION

Type Motion
Applications Board is ideal for mobile devices, medical and industrial instrumentation, navigation devices, hard drive protection and more.
On-board modules ADXL345 3-axis accelerometer
Key Features Ultra low power consumption: 40 µA in measurement mode and 0.1 µA in standby mode. Selectable measurement range of ±2 g, ±4 g, ±8 g, or ±16 g
Key Benefits High resolution enables measurement of inclination changes less than 1.0°. Embedded FIFO technology minimizes host processor load
Interface SPI,GPIO,I2C
Input Voltage 3.3V
Compatibility mikroBUS
Click board size S (28.6 x 25.4 mm)
