Sku: TT-OLI-A20(s16M)

Sold By: tenettech
  • Shipping in 10-12 Working days

Description of product

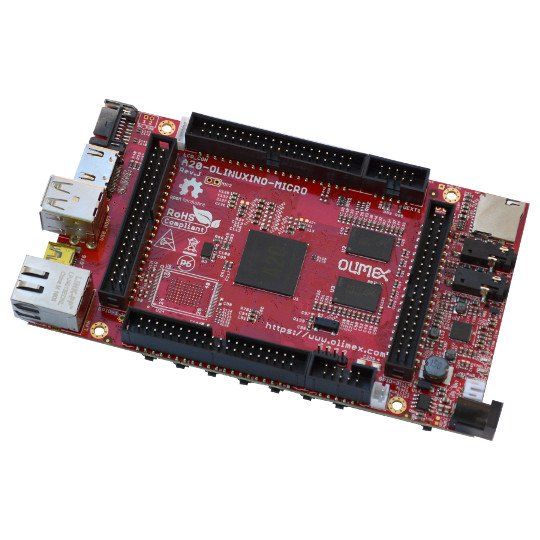

Open source hardware and open source software A20 Linux board with 0.1" step connectors for easier access and evaluation.

We offer several variants of this board. Aside from the base version we offer a variant with extra eMMC or NAND flash memory (suffix -e4G, -e16G, or -n8G); we have a variant with 16M SPI flash memory (suffix -s16M). We also have variants of the board suitable for industrial temperature range of operation (-40+85)C - these come with the "T2" chip and have "-IND" suffix in the name.


Allwinner A20 (T2) dual core Cortex-A7 processor, each core typically running at 1GHz and dual-core Mali 400 GPU; capable of FullHD (1080p) video playback
1GB DDR3 RAM memory
8GB NAND flash memory option (in A20-OLinuXino-MICRO-n8GB)
4GB eMMC flash memory option (in A20-OLinuXino-MICRO-e4GB and T2-OLinuXino-MICRO-e4GB-IND)
2KB EEPROM for MAC address storage and more
100Mbit native Ethernet with controller and connector
Battery connector with battery-charging capabilities
SATA connector with 5V SATA power jack
HDMI connector
2 x USB High-speed host with power control and current limiter
USB-OTG with power control and current limiter
VGA output on 6-pin 1.25mm (0.05") step connector
Audio headphones output
Microphone input on connector
2 x UEXT connectors
LCD connector compatible with with 4.3", 7.0", 10.1" LCD modules from Olimex
160 GPIOs on three GPIO connectors
MicroSD card connector
SD/MMC card connector
DEBUG-UART connector for console debug with USB-SERIAL-CABLE-F
Battery charge status LED
Power LED
10 BUTTONS with ANDROID functionality + RESET button
4 mount holes
6-16VDC input power supply, noise immune design up to Rev.I
8-24VDC input power supply, noise immune design Rev.J or later
PCB dimensions: (5600 x 3250) mils ~ (142.24 x 82.55) mm
Ambient temperature (0-70)°C for non industrial boards
Ambient temperature (-45+85)°C for -IND boards
