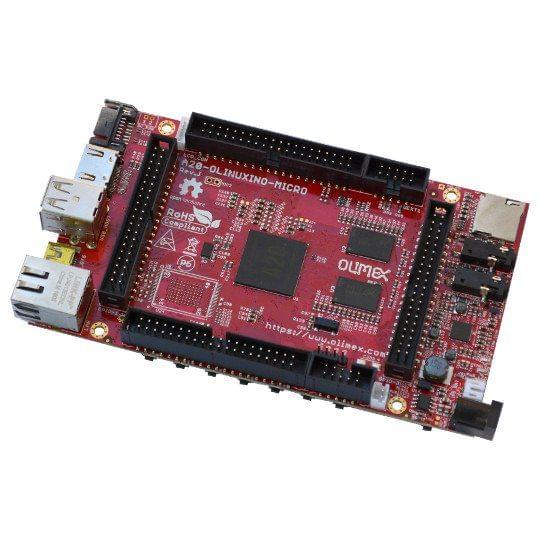

A20-OLinuXino-MICRO
A20-OLinuXino-MICRO

Description of product

FEATURES

  • Allwinner A20 dual core Cortex-A7 processor, each core typically running at 1GHz and dual-core Mali 400 GPU; capable of FullHD (1080p) video playback
  • 1GB DDR3 RAM memory
  • 8GB NAND flash memory option (in A20-OLinuXino-MICRO-n8GB)
  • 4GB eMMC flash memory option (in A20-OLinuXino-MICRO-e4GB and A20-OLinuXino-MICRO-e4GB-IND)
  • 2KB EEPROM for MAC address storage and more
  • 100Mbit native Ethernet with controller and connector
  • Battery connector with battery-charging capabilities
  • SATA connector with 5V SATA power jack
  • HDMI connector
  • 2 x USB High-speed host with power control and current limiter
  • USB-OTG with power control and current limiter
  • VGA output on 6-pin 1.25mm (0.05") step connector
  • Audio headphones output
  • Microphone input on connector
  • 2 x UEXT connectors
  • LCD connector compatible with with 4.3", 7.0", 10.1" LCD modules from Olimex
  • 160 GPIOs on three GPIO connectors
  • MicroSD card connector
  • SD/MMC card connector
  • DEBUG-UART connector for console debug with USB-SERIAL-CABLE-F
  • GPIO LED
  • Battery charge status LED
  • Power LED
  • 10 BUTTONS with ANDROID functionality + RESET button
  • 4 mount holes
  • 6-16VDC input power supply, noise immune design up to Rev.I
  • 8-24VDC input power supply, noise immune design Rev.J or later
  • PCB dimensions: (5600 x 3250) mils ~ (142.24 x 82.55) mm
  • Ambient temperature (0-70)°C for non industrial boards
  • Ambient temperature (-45+85)°C for -IND boards
