Description

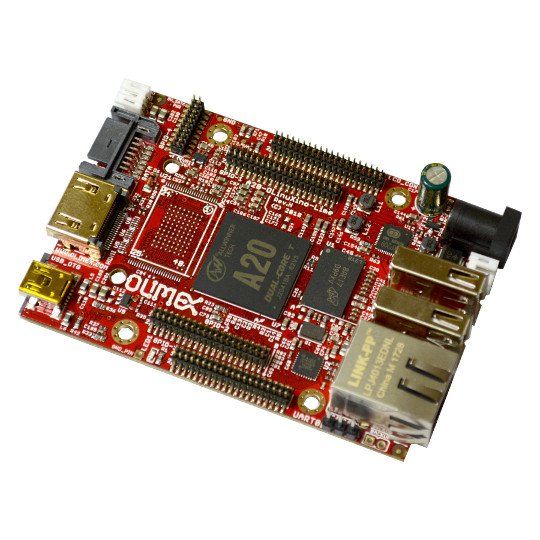

A20-OLinuXino-LIME is a compact (84x60)mm Linux open source hardware computer

We offer several variants of this board. Aside from the base version we offer a variant with extra eMMC or NAND flash memory (suffix -e4GB, -e16GB, or -n8GB); we have a variant with 16MB SPI flash memory (suffix -s16MB). We also have variants of the board suitable for industrial temperature range of operation (-40+85)C - these come with the "T2" chip and have "-IND" suffix in the name.

Features

Allwinner A20 dual core Cortex-A7 processor, each core typically running at 1GHz and dual-core Mali 400 GPU
512MB DDR3 RAM memory
NAND or eMMC Flash (for A20-OLinuXino-LIME-e/nXXGB)
SATA connector with 5V SATA power jack
Capable of FullHD (1080p) video playback
HDMI connector
2 x USB High-speed host with power control and current limiter
USB-OTG with power control and current limiter
100MBit native Ethernet
LiPo Battery connector with battery-charging capabilities
LCD connector compatible with with 4.3", 7.0", 10.1" LCD modules from Olimex
160 GPIOs on four GPIO connectors
MicroSD card connector
DEBUG-UART connector for console debug with USB-SERIAL-CABLE-F
GPIO LED
Battery charge status LED
Power LED
2KB EEPROM for MAC address storage and more
3 BUTTONS with ANDROID functionality + RESET button
4 mount holes
5V input power supply, noise immune design
PCB dimensions: 84 x 60 mm

TT-OLI-A20LIME(n8G)
in stock INR 6468.76
OLIMEX
1 1

A20-OLinuXino-LIMEn8G)

Sku: TT-OLI-A20LIME(n8G)
₹6,468.76


Sold By: tenettech
Features
  • Shipping in 10-12 Working days
  • http://cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5c99fd9c32eae02e4c141753/images/5c99fd9c32eae02e4c141754/5c99fd9f32eae02e4c141805/5c99fd9f32eae02e4c141805.jpg

Description of product

Description

A20-OLinuXino-LIME is a compact (84x60)mm Linux open source hardware computer

We offer several variants of this board. Aside from the base version we offer a variant with extra eMMC or NAND flash memory (suffix -e4GB, -e16GB, or -n8GB); we have a variant with 16MB SPI flash memory (suffix -s16MB). We also have variants of the board suitable for industrial temperature range of operation (-40+85)C - these come with the "T2" chip and have "-IND" suffix in the name.

Features

Allwinner A20 dual core Cortex-A7 processor, each core typically running at 1GHz and dual-core Mali 400 GPU
512MB DDR3 RAM memory
NAND or eMMC Flash (for A20-OLinuXino-LIME-e/nXXGB)
SATA connector with 5V SATA power jack
Capable of FullHD (1080p) video playback
HDMI connector
2 x USB High-speed host with power control and current limiter
USB-OTG with power control and current limiter
100MBit native Ethernet
LiPo Battery connector with battery-charging capabilities
LCD connector compatible with with 4.3", 7.0", 10.1" LCD modules from Olimex
160 GPIOs on four GPIO connectors
MicroSD card connector
DEBUG-UART connector for console debug with USB-SERIAL-CABLE-F
GPIO LED
Battery charge status LED
Power LED
2KB EEPROM for MAC address storage and more
3 BUTTONS with ANDROID functionality + RESET button
4 mount holes
5V input power supply, noise immune design
PCB dimensions: 84 x 60 mm
