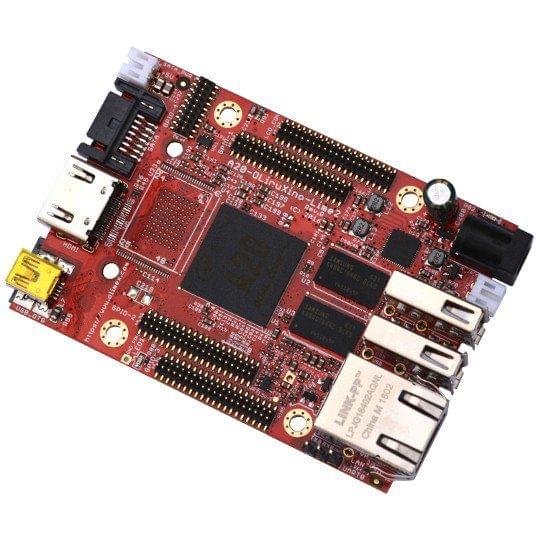

A20-OLinuXIno-LIME2
A20-OLinuXIno-LIME2

Description of product

A20-OLinuxino-LIME2 can be produced with NAND or eMMC Flash memory. The prefix 'e' or 'n' define the type of Flash memory on the board



FEATURES

  • Allwinner A20 dual core Cortex-A7 processor, each core typically running at 1GHz and dual-core Mali 400 GPU
  • 1GB DDR3 RAM memory
  • 8GB NAND flash memory option (in A20-OLinuXino-LIME2-n8GB)
  • 4GB eMMC flash memory option (in A20-OLinuXino-LIME2-e4GB)
  • Native SATA support with connector and 5V SATA power jack
  • Capable of FullHD (1080p) video playback
  • Native HDMI support with connector
  • 2 x USB High-speed host with power control and current limiter
  • USB-OTG with power control and current limiter
  • 1000MBit native Ethernet
  • LiPo Battery connector with battery-charging capabilities
  • LCD row of pins (0.05'' step)
  • 160 GPIOs on four GPIO rows of pins (0.05'' step)
  • MicroSD card connector
  • DEBUG-UART connector for console debug with USB-SERIAL-CABLE-F
  • GPIO LED
  • Battery charge status LED
  • Power LED
  • 2KB EEPROM for MAC address storage and more
  • 3 BUTTONS with ANDROID functionality + RESET button
  • 4 mount holes
  • 5V DC input power supply jack, noise immune design
  • PCB dimensions: (84 x 60)mm ~ (3.3 x 2.4)"
