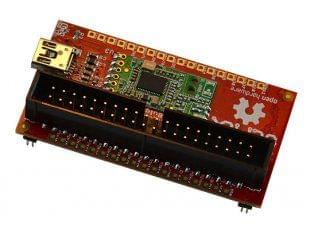

A13-SOM-WIFI-4GB

Description of product

A13-SOM-WIFI is System on Chip module shield which add WIFI connectivity to A13-SOM-XXX. All A13 signals are available on 0.1" holes.

A13-SOM-WIFI is an Open Source Hardware shield reference design with Eagle CAD files - everyone can modify and tailor the original design.

FEATURES

  • BL-8188-8M WiFi wireless module with Realtek RTL8188CUS chip
  • 4GB Flash for A13-SOM-WIFI-4GB version
  • USB-OTG with mini USB connector
  • LCD_CON header, compatible with the 4.3" and 7" Olimex-made displays
  • Support for the peripherals in the official A13-SOM Debian and Android releases
  • Power management DCDC
  • GPIO on 0.1" step holes
  • Built-in PCB antenna
  • Dimensions: (2.4 x 1.3)" ~ (6.1 x 4.8)cm
