A13-SOM-512

Description of product

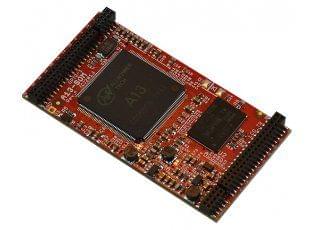

A13-SOM-512 is a System-on-Chip module, with an A13 Cortex-A8 ARM processor, power managment unit, 512MB DDR3 memory. All of the free A13 signals are available on 4 connectors with 0.05" step. A13-SOM-512 has UART console and microSD card connectors.

A13-SOM-512 can run Debian, OpenWRT, and Android 4.x

A13-SOM-WIFI reference design snap-on shield for A13-SOM with LCD connector, optional 4GB NAND Flash, optional 8MB SPI Flash, WIFI RTL8188CU module, GPIO connectors is available with Eagle CAD files, so everyone can modify and tailor to his needs. Templates for A13-SOM-512 receptacle made in Eagle and KiCAD are available.

FEATURES

  • Allwinner A13 Cortex-A8 processor typically running at 1Ghz
  • 512MB DDR3 memory
  • Power management DCDC
  • MicroSD card
  • UART console connector
  • 4 GPIO connectors 0.05" step
  • Status LEDs
  • RESET, UBOOT/HOME buttons
  • Dimensions: (2400 x 1300)mill ~ (61 x 33)mm
