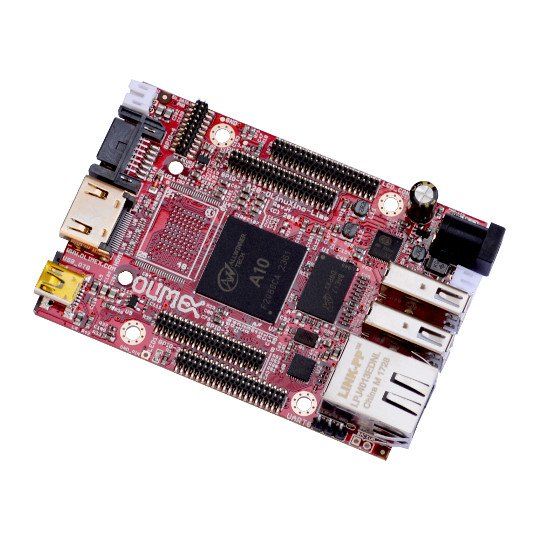

A10-OLinuXino-LIME-n8GB

Description of product

FEATURES
Allwinner A10 Cortex-A8 processor typically running at 1GHz and Mali 400 GPU
512MB DDR3 RAM memory
SATA connector with 5V SATA power jack
Capable of HD (720p) video playback
HDMI connector
2 x USB High-speed host with power control and current limiter
USB-OTG with power control and current limiter
100MBit native Ethernet
LiPo Battery connector with battery-charging capabilities
LCD row of pins (0.05'' step)
160 GPIOs on four GPIO rows of pins (0.05'' step)
MicroSD card connector
DEBUG-UART connector for console debug with USB-SERIAL-CABLE-F
GPIO LED
Battery charge status LED
Power LED
2KB EEPROM for MAC address storage and more
3 BUTTONS with ANDROID functionality + RESET button
4 mount holes
5V input power supply, noise immune design
PCB dimensions: 84x60 mm

DOCUMENTS
User's manual
Board's dimensions
HARDWARE
Schematics and hardware source file
Eagle shield template
KiCad shield template
SOFTWARE
GitHub OLINUXINO Project
Image links, instructions, demo software, customer projects and more might be found at the wiki page of A10: A10-OLinuXino-Lime article
