Description of product

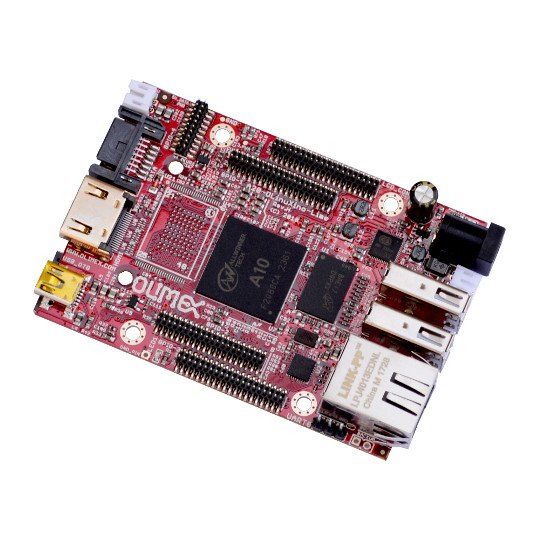

A10-OLinuXino-LIME is an open source hardware embedded ARM linux single board computer with allwinner A10 cortex-A8.


Allwinner A10 Cortex-A8 processor typically running at 1GHz and Mali 400 GPU
512MB DDR3 RAM memory
SATA connector with 5V SATA power jack
Capable of HD (720p) video playback
HDMI connector
2 x USB High-speed host with power control and current limiter
USB-OTG with power control and current limiter
100MBit native Ethernet
LiPo Battery connector with battery-charging capabilities
LCD row of pins (0.05'' step)
160 GPIOs on four GPIO rows of pins (0.05'' step)
MicroSD card connector
DEBUG-UART connector for console debug with USB-SERIAL-CABLE-F
Battery charge status LED
Power LED
2KB EEPROM for MAC address storage and more
3 BUTTONS with ANDROID functionality + RESET button
4 mount holes
5V input power supply, noise immune design
PCB dimensions: 84x60 mm
