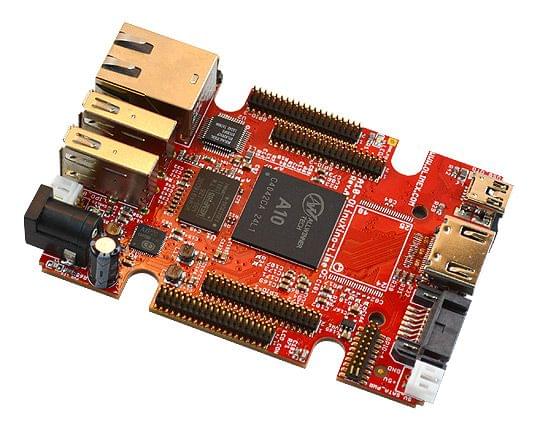

A10-OLinuXino-LIME
A10-OLinuXino-LIME

Description of product

A10-OLinuXino-LIME is a very compact (84x60)mm Linux Open-source Hardware computer


FEATURES


  • Allwinner A10 Cortex-A8 processor typically running at 1GHz and Mali 400 GPU
  • 512MB DDR3 RAM memory
  • SATA connector with 5V SATA power jack
  • Capable of HD (720p) video playback
  • HDMI connector
  • 2 x USB High-speed host with power control and current limiter
  • USB-OTG with power control and current limiter
  • 100MBit native Ethernet
  • LiPo Battery connector with battery-charging capabilities
  • LCD row of pins (0.05'' step)
  • 160 GPIOs on four GPIO rows of pins (0.05'' step)
  • MicroSD card connector
  • DEBUG-UART connector for console debug with USB-SERIAL-CABLE-F
  • GPIO LED
  • Battery charge status LED
  • Power LED
  • 2KB EEPROM for MAC address storage and more
  • 3 BUTTONS with ANDROID functionality + RESET button
  • 4 mount holes
  • 5V input power supply, noise immune design
  • PCB dimensions: 84x60 mm
