Laird Connectivity Inc. 994-VFT69383W11JN-518L-ND
Sku: TT-DKEY-994-VFT69383W11JN-518L-ND
₹12,381.27
Features
- Shipping in 10-12 Working Days
Description of product

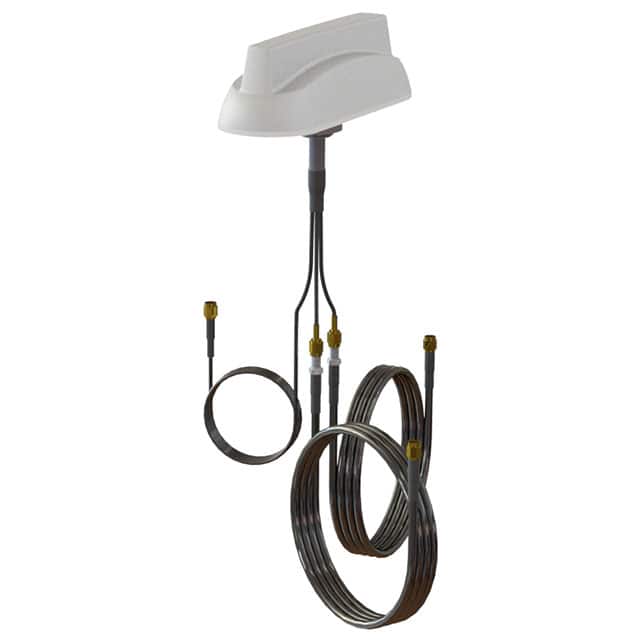

ANT LOW PROFILE 3-PORT SHARKFIN
Product Attributes:
| Series | - |
| Part Status | Active |
| RF Family/Standard | Cellular, General ISM, Navigation, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 752MHz, 859MHz, 920MHz, 1.561GHz, 1.575GHz, 1.602GHz, 2.745GHz, 2.45GHz, 5.45GHz |
| Frequency Range | 698MHz ~ 806MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.69GHz ~ 3.8GHz, 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz |
| Antenna Type | Dome |
| Number of Bands | 9 |
| VSWR | 2 |
| Return Loss | - |
| Gain | -0.3dBi, 0.6dBi, 1.6dBi, 3.4dBi, 4.5dBi, 5.6dBi, 4.3dBi, 3.4dBi, 4.6dBi |
| Power - Max | 10 W |
| Features | Cable - 910mm, LNA |
| Termination | SMA Male (2), RP-SMA |
| Ingress Protection | IP67 |
| Mounting Type | Panel Mount |
| Height (Max) | 1.890" (48.00mm) |
| Applications | 3G, 4G, 5G, Beidou, GLONASS, GNSS, GPS, ISM, LTE, Wi-Fi |
