67add88542f481003ee14695 Crouzet 966-1756-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/67add88642f481003ee14698/82862004.jpg

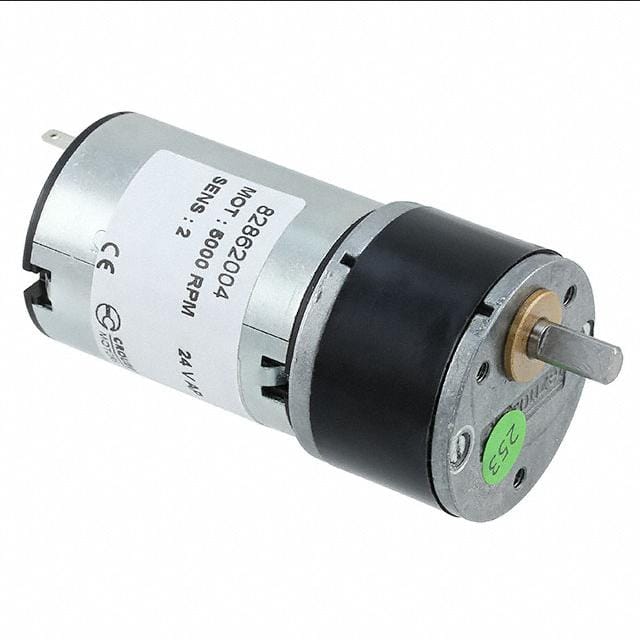

GEARMOTOR 440 RPM 24V

Product Attributes:

Series 82862
Product Status Active
Type DC Motor
Function Gearmotor
Motor Type Brushed
Voltage - Rated 24VDC
RPM 440 RPM
Torque - Rated (oz-in / mNm) 70.81 / 500
Power - Rated 3.9W
Encoder Type -
Size / Dimension Round - 1.268" Dia (32.20mm)
Diameter - Shaft 0.157" (4.00mm)
Length - Shaft and Bearing 0.492" (12.50mm)
Mounting Hole Spacing 1.874" (47.60mm)
Termination Style Solder Tab
Features -
Gear Reduction Ratio 9.76
Torque - Max Momentary (oz-in / mNm) -
Operating Temperature -
TT-DKEY-966-1756-ND
in stock INR
Crouzet
1 1
Crouzet 966-1756-ND

Crouzet 966-1756-ND

Sku: TT-DKEY-966-1756-ND
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

GEARMOTOR 440 RPM 24V

Product Attributes:

Series 82862
Product Status Active
Type DC Motor
Function Gearmotor
Motor Type Brushed
Voltage - Rated 24VDC
RPM 440 RPM
Torque - Rated (oz-in / mNm) 70.81 / 500
Power - Rated 3.9W
Encoder Type -
Size / Dimension Round - 1.268" Dia (32.20mm)
Diameter - Shaft 0.157" (4.00mm)
Length - Shaft and Bearing 0.492" (12.50mm)
Mounting Hole Spacing 1.874" (47.60mm)
Termination Style Solder Tab
Features -
Gear Reduction Ratio 9.76
Torque - Max Momentary (oz-in / mNm) -
Operating Temperature -
