5aa605fc787890f332e6ac89 7x10 G click https://cdn1.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5aa605fc787890f332e6ac89/images/5aa605fc787890f332e6ac8a/5aa605e528d46cf322aa9481/webp/5aa605e528d46cf322aa9481.jpg

Description

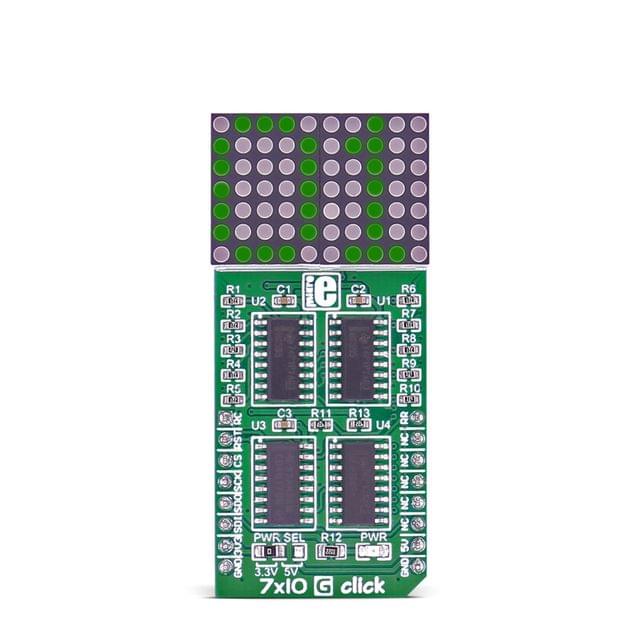

7x10 G click can be used for displaying letters on a display with 7x5 font resolution. It carries a matrix of 70 green LEDs driven by a pair of 8-bit serial-in, parallel-out shift registers, a Darlington Transistor array and a Johnson counter.

7x10 G click is designed to run on either 3.3V or 5V power supply.It communicates with the target microcontroller over SPI interface, with additional functionality provided by the following pins on the mikroBUS™ line: AN, PWM, RST.

How it works

7x5 is a standard resolution for displaying ASCII characters, so 7x10 click is essentially a dual character display capable of showing letters in more readable typefaces compared to a 14-segment display.

The dot matrix can also show scrolling text, thus fitting longer messages in small space. The pair of 8-bit SIPO shift registers drive the display. The current amplification necessary for driving the LEDs is performed by a Darlington Transistor array while a Johnson counter performs the necessary LED multiplex.

Specifications

Type LED Matrix
Applications 7x5 dot matrix text display for user interfaces
On-board modules SN74HC595 8-bit shift register, ULN2003ADR Darlington transistor array, CD4017BM96 CMOS counter
Key Benefits Displays letters in highly readable format, scrolling text capability
Interface SPI
Input Voltage 3.3V or 5V
Click board size L (57.15 x 25.4 mm)
TT-MK-MIKROE-2705
in stock INR 1522
MIKROELECTRONICA
1 1
