66aa296ff61e0d0d3f02cd1b PUI Audio, Inc. 668-1244-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/66aa2970f61e0d0d3f02cd32/at-1750-tfl-lw95-r.jpg

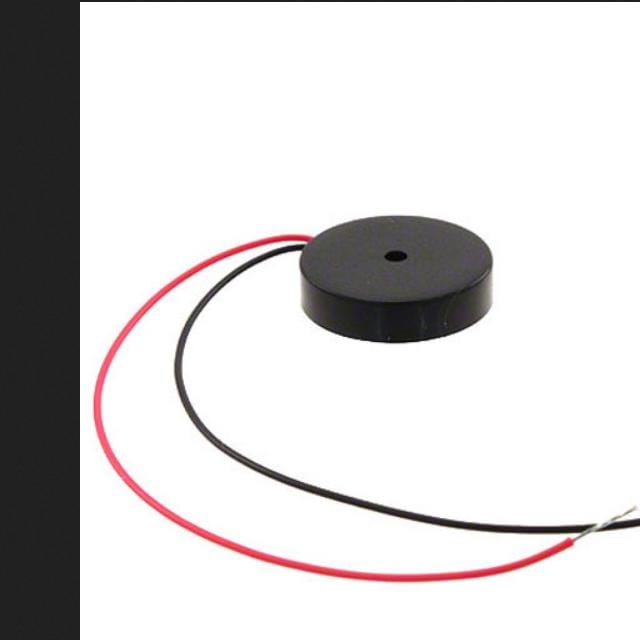

BUZZER PIEZO 10V 16.5MM CUSTOM

Product Attributes:

Series AT
Product Status Active
Driver Circuitry Transducer, Externally Driven
Input Type Peak-Peak Signal
Voltage - Rated 10 V
Voltage Range 1 ~ 30V
Frequency 5kHz
Technology Piezo
Operating Mode Single Tone
Duration -
Sound Pressure Level (SPL) 80dB @ 10V, 10cm
Current - Supply 9mA
Port Location Top
Operating Temperature -30°C ~ 85°C
Approval Agency -
Ratings -
Mounting Type Custom
Termination Wire Leads
Size / Dimension 0.650" Dia (16.50mm)
Height - Seated (Max) 0.177" (4.50mm)
Ingress Protection -
TT-DKEY-668-1244-ND
in stock INR 185.76
PUI Audio, Inc.
1 1
PUI Audio, Inc. 668-1244-ND

PUI Audio, Inc. 668-1244-ND

Sku: TT-DKEY-668-1244-ND
Be the first to review this product
₹185.76
Add to Cart Buy Now
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

BUZZER PIEZO 10V 16.5MM CUSTOM

Product Attributes:

Series AT
Product Status Active
Driver Circuitry Transducer, Externally Driven
Input Type Peak-Peak Signal
Voltage - Rated 10 V
Voltage Range 1 ~ 30V
Frequency 5kHz
Technology Piezo
Operating Mode Single Tone
Duration -
Sound Pressure Level (SPL) 80dB @ 10V, 10cm
Current - Supply 9mA
Port Location Top
Operating Temperature -30°C ~ 85°C
Approval Agency -
Ratings -
Mounting Type Custom
Termination Wire Leads
Size / Dimension 0.650" Dia (16.50mm)
Height - Seated (Max) 0.177" (4.50mm)
Ingress Protection -
