66b309bcd1cf73002ba7e2eb Delta Electronics 603-2216-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/66b309bed1cf73002ba7e2ee/afl12auhe-00.jpg

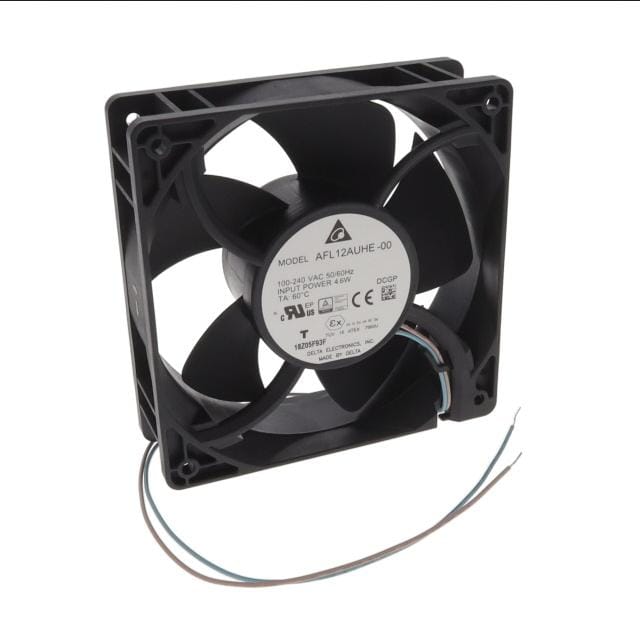

120X120X38MM 110 /230V AC FAN W/

Product Attributes:

Series AFL, EST
Product Status Active
Voltage - Rated 100 ~ 240VAC
Size / Dimension Square - 120mm L x 120mm H
Width 38.00mm
Air Flow 103.6 CFM (2.90m³/min)
Static Pressure 0.400 in H2O (99.6 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Electronic Commutation (EC), Locked Rotor Protection
Noise 45.0dB(A)
Power (Watts) 4.60W
RPM 3200 RPM
Termination 2 Wire Leads
Ingress Protection IP52
Operating Temperature -4 ~ 140°F (-20 ~ 60°C)
Approval Agency -
Weight -
TT-DKEY-603-2216-ND
in stock INR
Delta Electronics
1 1
Delta Electronics 603-2216-ND

Delta Electronics 603-2216-ND

Sku: TT-DKEY-603-2216-ND
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

120X120X38MM 110 /230V AC FAN W/

Product Attributes:

Series AFL, EST
Product Status Active
Voltage - Rated 100 ~ 240VAC
Size / Dimension Square - 120mm L x 120mm H
Width 38.00mm
Air Flow 103.6 CFM (2.90m³/min)
Static Pressure 0.400 in H2O (99.6 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Electronic Commutation (EC), Locked Rotor Protection
Noise 45.0dB(A)
Power (Watts) 4.60W
RPM 3200 RPM
Termination 2 Wire Leads
Ingress Protection IP52
Operating Temperature -4 ~ 140°F (-20 ~ 60°C)
Approval Agency -
Weight -
