67add8cb42f481003ee147be Nidec Components Corporation 563-2085-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/67add8cc42f481003ee147c1/series-mg16b.jpg

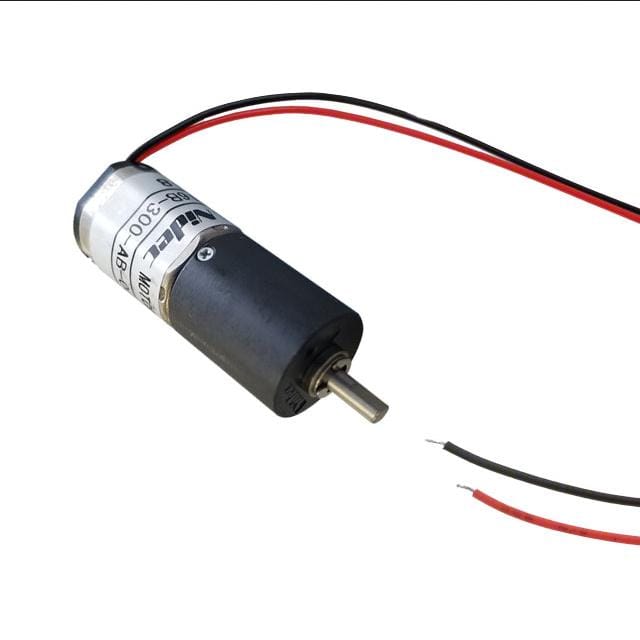

GEARMOTOR 100 RPM 12V PLANETARY

Product Attributes:

Series MG16B
Product Status Active
Type DC Motor
Function Gearmotor
Motor Type -
Voltage - Rated 12VDC
RPM 100 RPM
Torque - Rated (oz-in / mNm) 8.5 / 60
Power - Rated -
Encoder Type -
Size / Dimension Round - 0.629" Dia (16.00mm)
Diameter - Shaft 0.118" (3.00mm)
Length - Shaft and Bearing 0.394" (10.00mm)
Mounting Hole Spacing 0.433" (11.00mm)
Termination Style Wire Leads
Features -
Gear Reduction Ratio 120
Torque - Max Momentary (oz-in / mNm) 12.75 / 90
Operating Temperature -
TT-DKEY-563-2085-ND
in stock INR
Nidec Components Corporation
1 1
Nidec Components Corporation 563-2085-ND

Nidec Components Corporation 563-2085-ND

Sku: TT-DKEY-563-2085-ND
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

GEARMOTOR 100 RPM 12V PLANETARY

Product Attributes:

Series MG16B
Product Status Active
Type DC Motor
Function Gearmotor
Motor Type -
Voltage - Rated 12VDC
RPM 100 RPM
Torque - Rated (oz-in / mNm) 8.5 / 60
Power - Rated -
Encoder Type -
Size / Dimension Round - 0.629" Dia (16.00mm)
Diameter - Shaft 0.118" (3.00mm)
Length - Shaft and Bearing 0.394" (10.00mm)
Mounting Hole Spacing 0.433" (11.00mm)
Termination Style Wire Leads
Features -
Gear Reduction Ratio 120
Torque - Max Momentary (oz-in / mNm) 12.75 / 90
Operating Temperature -
