6129d32e3c17807de4c1e76d Abracon LLC 535-14682-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/6129d3303c17807de4c1e7c3/mfg_apagm2704a-c2g.jpg

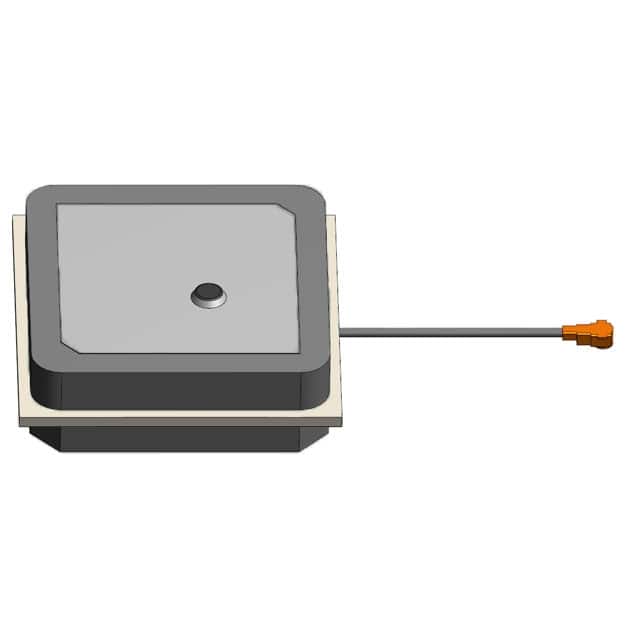

RF ANT GNSS/GPS/GLONA ACT PATCH

Product Attributes:

Series APAG
Part Status Active
RF Family/Standard Navigation
Frequency Group UHF (1GHz ~ 2GHz)
Frequency (Center/Band) 1.575GHz, 1.601GHz
Frequency Range 1.574GHz ~ 1.576GHz, 1.6GHz ~ 1.602GHz
Antenna Type Ceramic Patch
Number of Bands 2
VSWR 1.02, 1.03
Return Loss -35.1dB, -37.9dB
Gain 4.5dBi
Power - Max -
Features Cable - 30mm, LNA
Termination U.FL (UMCC), IPEX MHF1
Ingress Protection -
Mounting Type Surface Mount
Height (Max) 0.157" (4.00mm)
Applications GLONASS, GNSS, GPS
TT-DKEY-535-14682-ND
in stock INR
Abracon LLC
1 1
Abracon LLC 535-14682-ND

Abracon LLC 535-14682-ND

Sku: TT-DKEY-535-14682-ND
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

RF ANT GNSS/GPS/GLONA ACT PATCH

Product Attributes:

Series APAG
Part Status Active
RF Family/Standard Navigation
Frequency Group UHF (1GHz ~ 2GHz)
Frequency (Center/Band) 1.575GHz, 1.601GHz
Frequency Range 1.574GHz ~ 1.576GHz, 1.6GHz ~ 1.602GHz
Antenna Type Ceramic Patch
Number of Bands 2
VSWR 1.02, 1.03
Return Loss -35.1dB, -37.9dB
Gain 4.5dBi
Power - Max -
Features Cable - 30mm, LNA
Termination U.FL (UMCC), IPEX MHF1
Ingress Protection -
Mounting Type Surface Mount
Height (Max) 0.157" (4.00mm)
Applications GLONASS, GNSS, GPS
