6405d67be7a979a6319bc21a Sumida America Inc. 527-1026-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/6405d67ce7a979a6319bc22f/f0473a.jpg

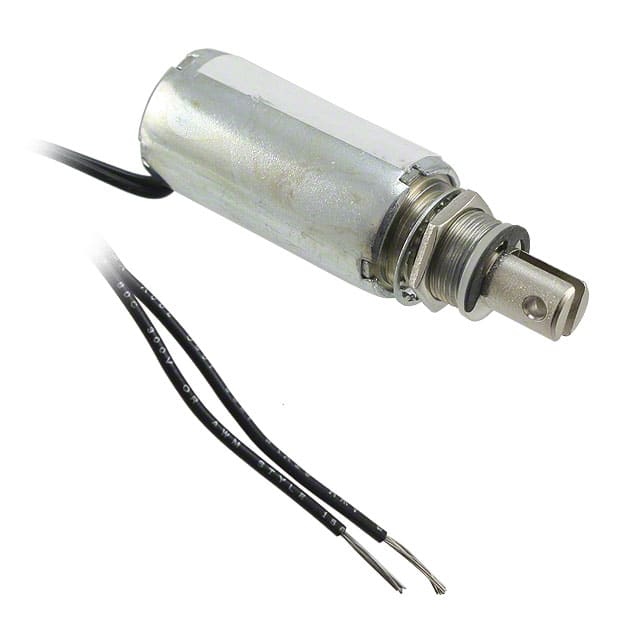

SOLENOID PULL CONTINUOUS 24V

Product Attributes:

SeriesL-75-2
Product StatusActive
TechnologyElectromechanical
TypeClosed Frame (Pull), Tubular
Duty CycleContinuous
Voltage - Rated24VDC
Stroke Length0.500" (12.70mm)
Power (Watts)6 W
DC Resistance (DCR)88.3Ohm
Bushing Thread15/32-32 UNF-2A
Mounting TypePanel Mount
Termination StyleWire Leads
Size / Dimension0.737" Dia x 1.490" L (18.72mm x 37.85mm)
Diameter - Shaft0.312" (7.93mm)
Shaft DetailClevis
TT-DKEY-527-1026-ND
in stockINR 4348.215
Sumida America Inc.
1 1
Sumida America Inc. 527-1026-ND

Sumida America Inc. 527-1026-ND

Sku: TT-DKEY-527-1026-ND
₹4,348.22


Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

SOLENOID PULL CONTINUOUS 24V

Product Attributes:

SeriesL-75-2
Product StatusActive
TechnologyElectromechanical
TypeClosed Frame (Pull), Tubular
Duty CycleContinuous
Voltage - Rated24VDC
Stroke Length0.500" (12.70mm)
Power (Watts)6 W
DC Resistance (DCR)88.3Ohm
Bushing Thread15/32-32 UNF-2A
Mounting TypePanel Mount
Termination StyleWire Leads
Size / Dimension0.737" Dia x 1.490" L (18.72mm x 37.85mm)
Diameter - Shaft0.312" (7.93mm)
Shaft DetailClevis
