6630c4deb986dce3268273dc Analog Devices Inc. 505-HMC966LP4E-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/6630c4dfb986dce3268273ff/505percent7e24qfn-1percent7epercent7e24.jpg

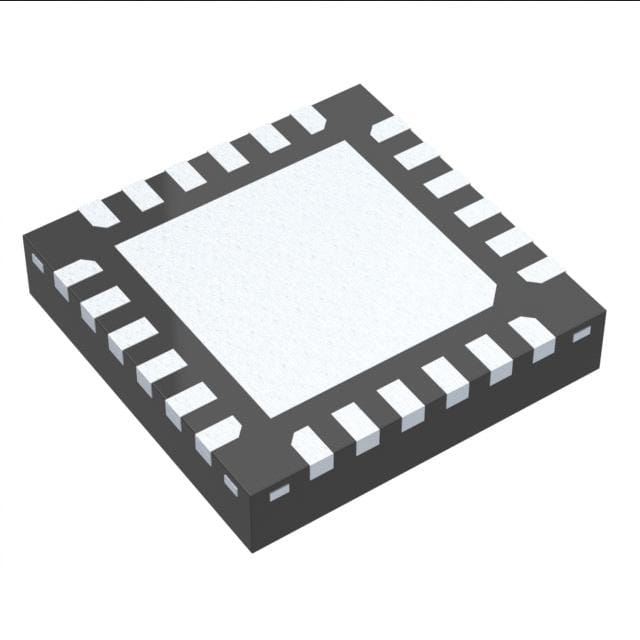

IC MMIC IQ DOWNCONVERTER 24-QFN

Product Attributes:

Series	-
Product Status	Active
RF Type	General Purpose
Frequency	17GHz ~ 20GHz
Number of Mixers	1
Gain	14dB
Noise Figure	2.5dB
Secondary Attributes	Down Converter
Current - Supply	160mA
Voltage - Supply	3.5V
Mounting Type	Surface Mount
Package / Case	24-VFQFN Exposed Pad
Supplier Device Package	24-QFN (4x4)

DataSheet:

Product DataSheet

TT-DKEY-505-HMC966LP4E-ND

in stockINR

Analog Devices Inc.

1 1
