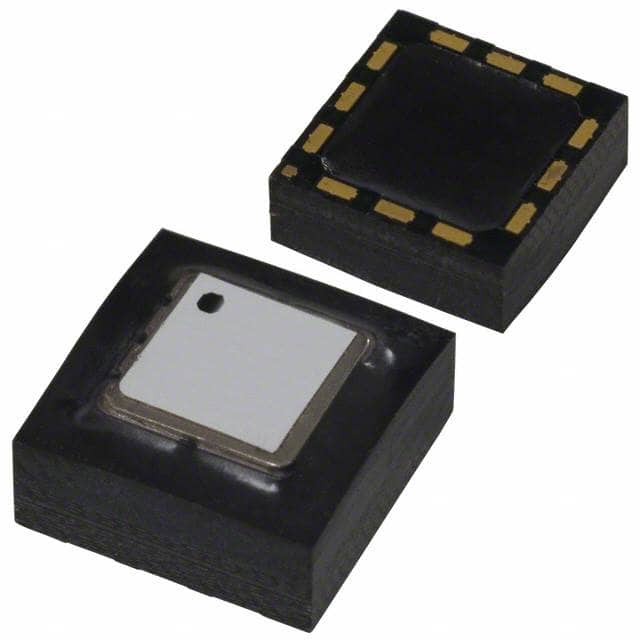

6400632b6520dcc689cf5ba3 Analog Devices Inc. 505-ADRF5024SCCZ-EP-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/6400632c6520dcc689cf5bb2/505-12-lga.jpg

40GHZ, LOW LOSS, REFLECTIVE, FAS

Product Attributes:

Series -
Product Status Active
RF Type Cellular, Radar, VSAT
Topology Reflective
Circuit SPDT
Frequency Range 100MHz ~ 44GHz
Isolation 35dB
Insertion Loss 2.1dB
Test Frequency 44GHz
P1dB 27.5dBm
IIP3 50dBm
Features -
Impedance 50Ohm
Voltage - Supply 3.15V ~ 3.45V
Operating Temperature -55°C ~ 105°C
Mounting Type Surface Mount
Package / Case 12-VFLGA
Supplier Device Package 12-LGA (2.25x2.25)
TT-DKEY-505-ADRF5024SCCZ-EP-ND
in stock INR
Analog Devices Inc.
1 1
Analog Devices Inc. 505-ADRF5024SCCZ-EP-ND

Analog Devices Inc. 505-ADRF5024SCCZ-EP-ND

Sku: TT-DKEY-505-ADRF5024SCCZ-EP-ND
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

40GHZ, LOW LOSS, REFLECTIVE, FAS

Product Attributes:

Series -
Product Status Active
RF Type Cellular, Radar, VSAT
Topology Reflective
Circuit SPDT
Frequency Range 100MHz ~ 44GHz
Isolation 35dB
Insertion Loss 2.1dB
Test Frequency 44GHz
P1dB 27.5dBm
IIP3 50dBm
Features -
Impedance 50Ohm
Voltage - Supply 3.15V ~ 3.45V
Operating Temperature -55°C ~ 105°C
Mounting Type Surface Mount
Package / Case 12-VFLGA
Supplier Device Package 12-LGA (2.25x2.25)
