66aa298f48eccef468bfe258 Mallory Sonalert Products Inc. 458-AST0540MW-3.6TRQTR-ND,458-AST0540MW-3.6TRQCT-ND,458-AST0540MW-3.6TRQDKR-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/66aa299048eccef468bfe271/ast0540mw-3percent2c6-percent285x3percent29.jpg

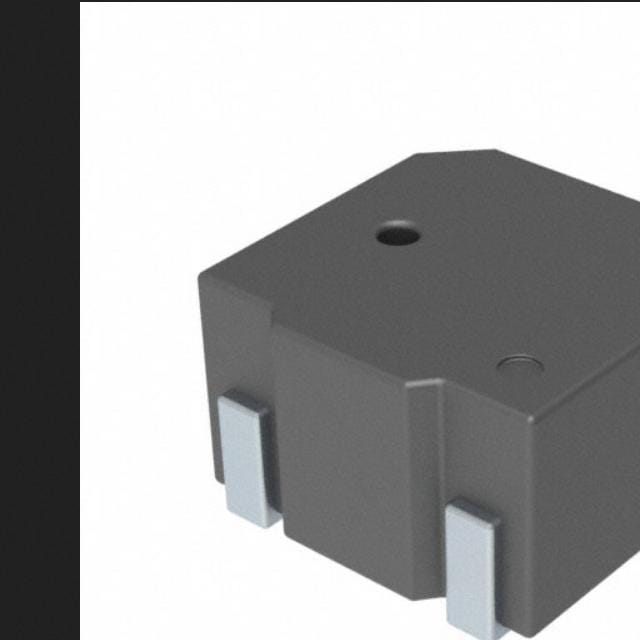

BUZZER MAGN 3.6V 5MMX5MMSMD

Product Attributes:

Series AST
Product Status Active
Driver Circuitry Transducer, Externally Driven
Input Type Peak-Peak Signal
Voltage - Rated 3.6 V
Voltage Range 2 ~ 4V
Frequency 4kHz
Technology Magnetic
Operating Mode Single Tone
Duration -
Sound Pressure Level (SPL) 80dB @ 3.6V, 10cm
Current - Supply 110mA
Port Location Top
Operating Temperature -20°C ~ 60°C
Approval Agency -
Ratings -
Mounting Type Surface Mount
Termination Solder Pads
Size / Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) 0.118" (3.00mm)
Ingress Protection -
TT-DKEY-458-AST0540MW-3.6TRQTR-ND,458-AST0540MW-3.6TRQCT-ND,458-AST0540MW-3.6TRQDKR-ND
in stock INR
Mallory Sonalert Products Inc.
1 1
Mallory Sonalert Products Inc. 458-AST0540MW-3.6TRQTR-ND,458-AST0540MW-3.6TRQCT-ND,458-AST0540MW-3.6TRQDKR-ND

Mallory Sonalert Products Inc. 458-AST0540MW-3.6TRQTR-ND,458-AST0540MW-3.6TRQCT-ND,458-AST0540MW-3.6TRQDKR-ND

Sku: TT-DKEY-458-AST0540MW-3.6TRQTR-ND,458-AST0540MW-3.6TRQCT-ND,458-AST0540MW-3.6TRQDKR-ND
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

BUZZER MAGN 3.6V 5MMX5MMSMD

Product Attributes:

Series AST
Product Status Active
Driver Circuitry Transducer, Externally Driven
Input Type Peak-Peak Signal
Voltage - Rated 3.6 V
Voltage Range 2 ~ 4V
Frequency 4kHz
Technology Magnetic
Operating Mode Single Tone
Duration -
Sound Pressure Level (SPL) 80dB @ 3.6V, 10cm
Current - Supply 110mA
Port Location Top
Operating Temperature -20°C ~ 60°C
Approval Agency -
Ratings -
Mounting Type Surface Mount
Termination Solder Pads
Size / Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) 0.118" (3.00mm)
Ingress Protection -
