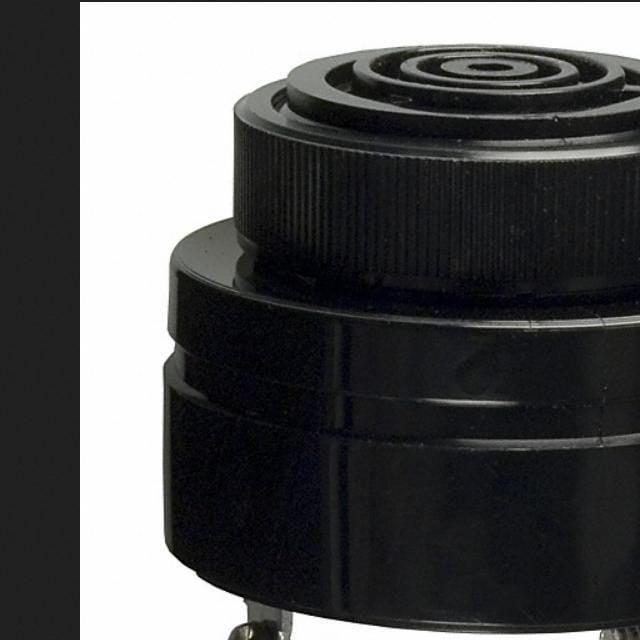

BUZZER PIEZO 42.85MM PNL MNT

Product Attributes:

Series SC
Product Status Active
Driver Circuitry Indicator, Internally Driven
Input Type AC, DC
Voltage - Rated -
Voltage Range 30 ~ 120V
Frequency 4.5kHz
Technology Piezo
Operating Mode Pulse, Slow
Duration 0.5 ~ 2.5 PPS
Sound Pressure Level (SPL) 68dB @ 30V, 61cm
Current - Supply 6 ~ 40mA
Port Location Top
Operating Temperature -30°C ~ 65°C
Approval Agency -
Ratings -
Mounting Type Panel Mount
Termination Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)
Size / Dimension 1.687" Dia (42.85mm)
Height - Seated (Max) 1.399" (35.54mm)
Ingress Protection -
TT-DKEY-458-1570-ND
in stock INR
Mallory Sonalert Products Inc.
1 1
Mallory Sonalert Products Inc. 458-1570-ND

Mallory Sonalert Products Inc. 458-1570-ND

Sku: TT-DKEY-458-1570-ND
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

BUZZER PIEZO 42.85MM PNL MNT

Product Attributes:

Series SC
Product Status Active
Driver Circuitry Indicator, Internally Driven
Input Type AC, DC
Voltage - Rated -
Voltage Range 30 ~ 120V
Frequency 4.5kHz
Technology Piezo
Operating Mode Pulse, Slow
Duration 0.5 ~ 2.5 PPS
Sound Pressure Level (SPL) 68dB @ 30V, 61cm
Current - Supply 6 ~ 40mA
Port Location Top
Operating Temperature -30°C ~ 65°C
Approval Agency -
Ratings -
Mounting Type Panel Mount
Termination Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)
Size / Dimension 1.687" Dia (42.85mm)
Height - Seated (Max) 1.399" (35.54mm)
Ingress Protection -
