66aa291848eccef468bfd699 Mallory Sonalert Products Inc. 458-1436-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/66aa291948eccef468bfd6b4/sbt5lm1pc.jpg

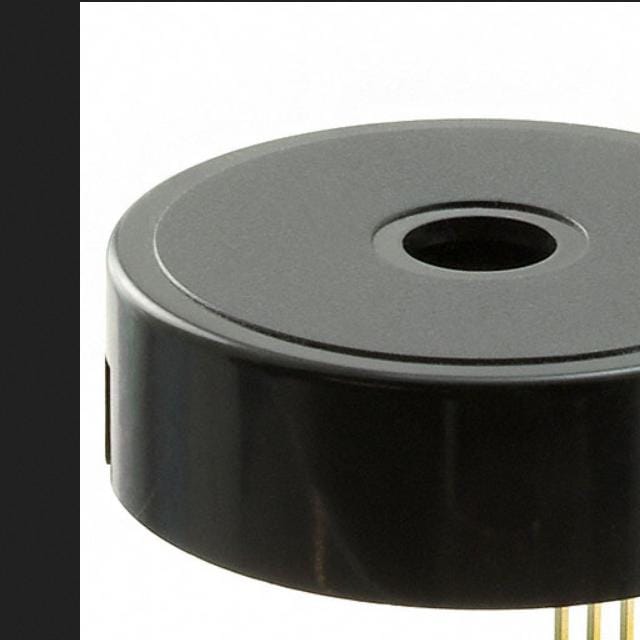

BUZZER PIEZO 44.5MM TH

Product Attributes:

Series -
Product Status Active
Driver Circuitry Indicator, Internally Driven
Input Type DC
Voltage - Rated -
Voltage Range 3.3 ~ 5V
Frequency 2.075kHz
Technology Piezo
Operating Mode Pin Selectable
Duration Variable
Sound Pressure Level (SPL) 85dB @ 3.3V, 10cm
Current - Supply 15 ~ 20mA
Port Location Top
Operating Temperature -30°C ~ 65°C
Approval Agency cUL, UL
Ratings Medical
Mounting Type Through Hole
Termination PC Pins
Size / Dimension 1.752" Dia (44.50mm)
Height - Seated (Max) 0.551" (14.00mm)
Ingress Protection -
TT-DKEY-458-1436-ND
in stock INR
Mallory Sonalert Products Inc.
1 1
Mallory Sonalert Products Inc. 458-1436-ND

Mallory Sonalert Products Inc. 458-1436-ND

Sku: TT-DKEY-458-1436-ND
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

BUZZER PIEZO 44.5MM TH

Product Attributes:

Series -
Product Status Active
Driver Circuitry Indicator, Internally Driven
Input Type DC
Voltage - Rated -
Voltage Range 3.3 ~ 5V
Frequency 2.075kHz
Technology Piezo
Operating Mode Pin Selectable
Duration Variable
Sound Pressure Level (SPL) 85dB @ 3.3V, 10cm
Current - Supply 15 ~ 20mA
Port Location Top
Operating Temperature -30°C ~ 65°C
Approval Agency cUL, UL
Ratings Medical
Mounting Type Through Hole
Termination PC Pins
Size / Dimension 1.752" Dia (44.50mm)
Height - Seated (Max) 0.551" (14.00mm)
Ingress Protection -
