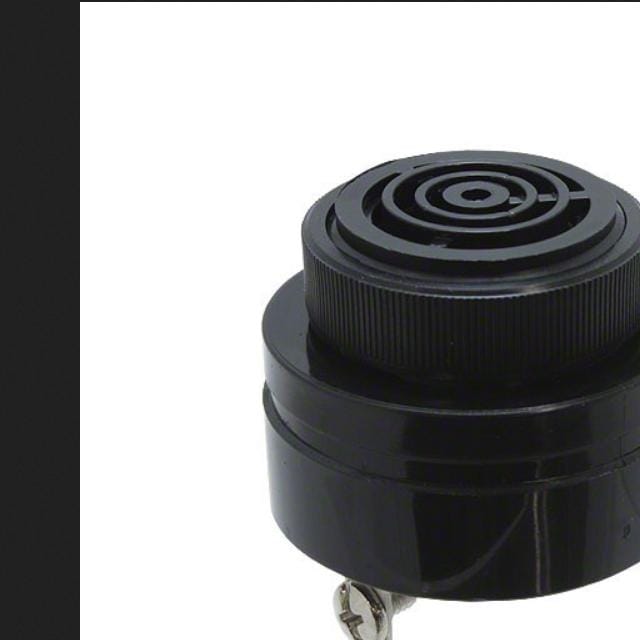

BUZZER PIEZO 42.98MM PNL MNT

Product Attributes:

SeriesSC
Product StatusActive
Driver CircuitryIndicator, Internally Driven
Input TypeAC
Voltage - Rated-
Voltage Range10 ~ 48V
Frequency2.9kHz
TechnologyPiezo
Operating ModePulse, Fast
Duration2 ~ 10 PPS
Sound Pressure Level (SPL)91dB @ 10V, 61cm
Current - Supply4 ~ 26mA
Port LocationTop
Operating Temperature-30°C ~ 65°C
Approval Agency-
Ratings-
Mounting TypePanel Mount
TerminationScrew Terminal, Quick Connect Tab - 0.250" (6.35mm)
Size / Dimension1.692" Dia (42.98mm)
Height - Seated (Max)1.330" (33.77mm)
Ingress Protection-
TT-DKEY-458-1234-ND
in stockINR 6916.32
Mallory Sonalert Products Inc.
1 1
Mallory Sonalert Products Inc. 458-1234-ND

Mallory Sonalert Products Inc. 458-1234-ND

Sku: TT-DKEY-458-1234-ND
₹6,916.32


Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

BUZZER PIEZO 42.98MM PNL MNT

Product Attributes:

SeriesSC
Product StatusActive
Driver CircuitryIndicator, Internally Driven
Input TypeAC
Voltage - Rated-
Voltage Range10 ~ 48V
Frequency2.9kHz
TechnologyPiezo
Operating ModePulse, Fast
Duration2 ~ 10 PPS
Sound Pressure Level (SPL)91dB @ 10V, 61cm
Current - Supply4 ~ 26mA
Port LocationTop
Operating Temperature-30°C ~ 65°C
Approval Agency-
Ratings-
Mounting TypePanel Mount
TerminationScrew Terminal, Quick Connect Tab - 0.250" (6.35mm)
Size / Dimension1.692" Dia (42.98mm)
Height - Seated (Max)1.330" (33.77mm)
Ingress Protection-
