66aa2793f61e0d0d3f028862 Mallory Sonalert Products Inc. 458-1183-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/66aa2793f61e0d0d3f028871/za-series.jpg

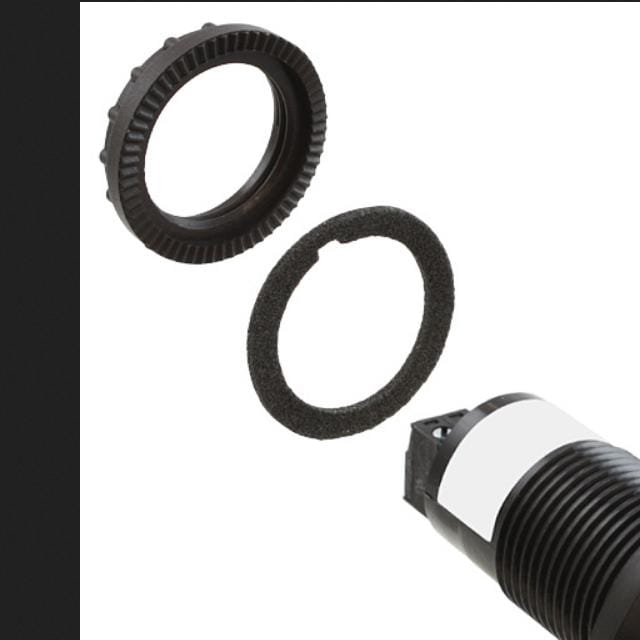

BUZZER PIEZO 30.74MM PNL MNT

Product Attributes:

Series ZA
Product Status Active
Driver Circuitry Indicator, Internally Driven
Input Type AC, DC
Voltage - Rated -
Voltage Range 48 ~ 120V
Frequency 3.3kHz
Technology Piezo
Operating Mode Single Tone
Duration -
Sound Pressure Level (SPL) 85dB @ 48V, 61cm
Current - Supply 40mA
Port Location Top
Operating Temperature -30°C ~ 65°C
Approval Agency cUL, UL
Ratings -
Mounting Type Panel Mount
Termination Terminal Block
Size / Dimension 1.210" Dia (30.74mm)
Height - Seated (Max) 2.234" (56.75mm)
Ingress Protection NEMA 3R, 4X, 12
TT-DKEY-458-1183-ND
in stock INR
Mallory Sonalert Products Inc.
1 1
Mallory Sonalert Products Inc. 458-1183-ND

Mallory Sonalert Products Inc. 458-1183-ND

Sku: TT-DKEY-458-1183-ND
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

BUZZER PIEZO 30.74MM PNL MNT

Product Attributes:

Series ZA
Product Status Active
Driver Circuitry Indicator, Internally Driven
Input Type AC, DC
Voltage - Rated -
Voltage Range 48 ~ 120V
Frequency 3.3kHz
Technology Piezo
Operating Mode Single Tone
Duration -
Sound Pressure Level (SPL) 85dB @ 48V, 61cm
Current - Supply 40mA
Port Location Top
Operating Temperature -30°C ~ 65°C
Approval Agency cUL, UL
Ratings -
Mounting Type Panel Mount
Termination Terminal Block
Size / Dimension 1.210" Dia (30.74mm)
Height - Seated (Max) 2.234" (56.75mm)
Ingress Protection NEMA 3R, 4X, 12
