66aa29c4068504f35187d1ae Mallory Sonalert Products Inc. 458-1050-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/66aa29c6068504f35187d1fd/asi301qpercent2casi401q.jpg

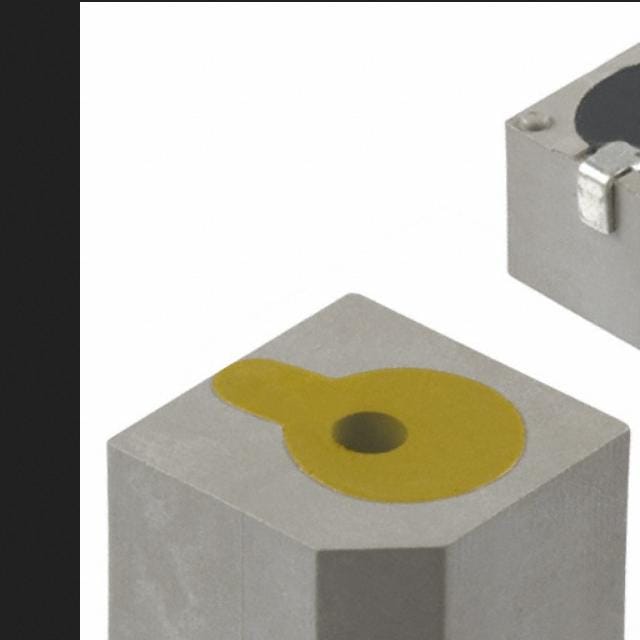

BUZZER MAGN 12V 12.6X12.6 W SMD

Product Attributes:

Series ASI
Product Status Active
Driver Circuitry Indicator, Internally Driven
Input Type DC
Voltage - Rated 12 V
Voltage Range 9 ~ 15V
Frequency 2.4kHz
Technology Magnetic
Operating Mode Single Tone
Duration -
Sound Pressure Level (SPL) 90dB @ 12V, 10cm
Current - Supply 50mA
Port Location Top
Operating Temperature -20°C ~ 70°C
Approval Agency -
Ratings Washable
Mounting Type Surface Mount
Termination Solder Pads
Size / Dimension 0.496" L x 0.496" W (12.60mm x 12.60mm)
Height - Seated (Max) 0.402" (10.20mm)
Ingress Protection -
TT-DKEY-458-1050-ND
in stock INR
Mallory Sonalert Products Inc.
1 1
Mallory Sonalert Products Inc. 458-1050-ND

Mallory Sonalert Products Inc. 458-1050-ND

Sku: TT-DKEY-458-1050-ND
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

BUZZER MAGN 12V 12.6X12.6 W SMD

Product Attributes:

Series ASI
Product Status Active
Driver Circuitry Indicator, Internally Driven
Input Type DC
Voltage - Rated 12 V
Voltage Range 9 ~ 15V
Frequency 2.4kHz
Technology Magnetic
Operating Mode Single Tone
Duration -
Sound Pressure Level (SPL) 90dB @ 12V, 10cm
Current - Supply 50mA
Port Location Top
Operating Temperature -20°C ~ 70°C
Approval Agency -
Ratings Washable
Mounting Type Surface Mount
Termination Solder Pads
Size / Dimension 0.496" L x 0.496" W (12.60mm x 12.60mm)
Height - Seated (Max) 0.402" (10.20mm)
Ingress Protection -
