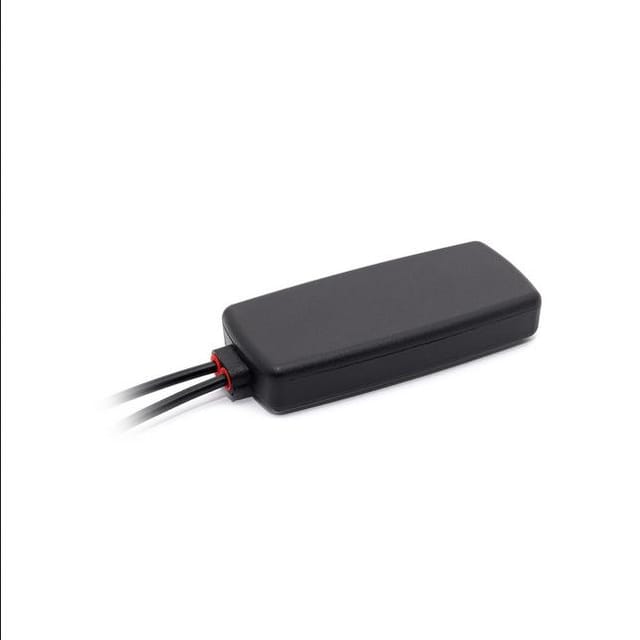

SPARROW 2IN1 4G/3G/2G WIFI6 ADH

Product Attributes:

Series -
Product Status Active
RF Family/Standard 802.15.4, Bluetooth, General ISM, WiFi
Frequency Group Wide Band
Frequency (Center/Band) 829MHz, 1.94GHz, 2.45GHz, 2.6GHz, 5.422GHz, 6.525GHz
Frequency Range 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.41GHz ~ 2.49GHz, 2.5GHz ~ 2.7GHz, 4.92GHz ~ 5.925GHz, 5.925GHz ~ 7.125GHz
Antenna Type Module
Number of Bands 6
VSWR 1.4, 1.5, 1.8, 1.9, 2, 2.2
Return Loss -16.7dB, -14.7dB, -13.1dB, -11.6dB, -11.3dB, -9.8dB
Gain 2dBi, 1dBi, 3.9dBi, -0.6dBi, 4.4dBi, 4.1dBi
Power - Max 25 W
Features Cable - 3m
Termination SMA Male
Ingress Protection IP67, IP69
Grade -
Qualification -
Mounting Type Adhesive
Height (Max) 0.563" (14.30mm)
Applications 2G, 3G, 4G, Bluetooth, ISM, LTE, Wi-Fi, Zigbee™
TT-DKEY-4350-2J4847P-ND
in stock INR
2J Antennas
1 1
2J Antennas 4350-2J4847P-ND

2J Antennas 4350-2J4847P-ND

Sku: TT-DKEY-4350-2J4847P-ND
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

SPARROW 2IN1 4G/3G/2G WIFI6 ADH

Product Attributes:

Series -
Product Status Active
RF Family/Standard 802.15.4, Bluetooth, General ISM, WiFi
Frequency Group Wide Band
Frequency (Center/Band) 829MHz, 1.94GHz, 2.45GHz, 2.6GHz, 5.422GHz, 6.525GHz
Frequency Range 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.41GHz ~ 2.49GHz, 2.5GHz ~ 2.7GHz, 4.92GHz ~ 5.925GHz, 5.925GHz ~ 7.125GHz
Antenna Type Module
Number of Bands 6
VSWR 1.4, 1.5, 1.8, 1.9, 2, 2.2
Return Loss -16.7dB, -14.7dB, -13.1dB, -11.6dB, -11.3dB, -9.8dB
Gain 2dBi, 1dBi, 3.9dBi, -0.6dBi, 4.4dBi, 4.1dBi
Power - Max 25 W
Features Cable - 3m
Termination SMA Male
Ingress Protection IP67, IP69
Grade -
Qualification -
Mounting Type Adhesive
Height (Max) 0.563" (14.30mm)
Applications 2G, 3G, 4G, Bluetooth, ISM, LTE, Wi-Fi, Zigbee™
