66aa0bc727fed7b8587f8fcc Knowles 423-1119-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/66aa0bc827fed7b8587f9005/fg-23329-d65.jpg

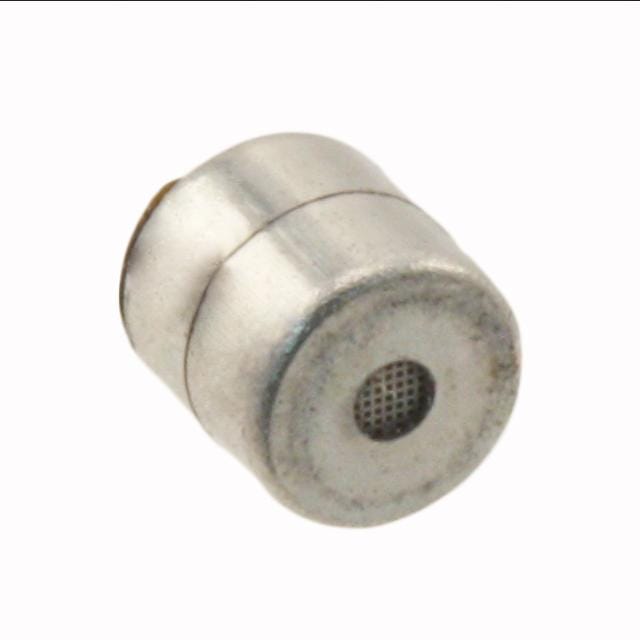

MIC COND ANLG OMNI -53DB 0.101"D

Product Attributes:

Series FG
Product Status Active
Type Electret Condenser
Output Type Analog
Direction Omnidirectional
Frequency Range 100 Hz ~ 10 kHz
Sensitivity -53dB ±3dB @ 74dB SPL
S/N Ratio -
Voltage - Rated 1.3 V
Current - Supply 50 µA
Port Location Top
Ratings -
Termination Solder Pads
Size / Dimension 0.101" Dia (2.56mm)
Height (Max) 0.101" (2.56mm)
Shape Circular
Impedance 4.4 kOhms
Voltage Range 1.3 V ~ 3 V
Grade -
Qualification -
TT-DKEY-423-1119-ND
in stock INR
Knowles
1 1
Knowles 423-1119-ND

Knowles 423-1119-ND

Sku: TT-DKEY-423-1119-ND
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

MIC COND ANLG OMNI -53DB 0.101"D

Product Attributes:

Series FG
Product Status Active
Type Electret Condenser
Output Type Analog
Direction Omnidirectional
Frequency Range 100 Hz ~ 10 kHz
Sensitivity -53dB ±3dB @ 74dB SPL
S/N Ratio -
Voltage - Rated 1.3 V
Current - Supply 50 µA
Port Location Top
Ratings -
Termination Solder Pads
Size / Dimension 0.101" Dia (2.56mm)
Height (Max) 0.101" (2.56mm)
Shape Circular
Impedance 4.4 kOhms
Voltage Range 1.3 V ~ 3 V
Grade -
Qualification -
